在飞牛OS部署MCP服务拉取系统日志
前言
最近 AI 再次成为热点，而 MCP 的出现在一定程度上弥补了大模型与外部系统交互能力的不足。
借助 MCP，模型不再只是生成文本，而是可以直接调用外部服务，从而真正参与到实际系统的操作与管理中。
本文通过一个简单示例，演示如何部署一个 MCP 服务，并为 AI 提供获取飞牛系统日志的能力。
服务代码
被折叠的代码
```python
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
trimrpc MCP Server — fnOS 系统管理 MCP 工具服务
================================================
通过 Streamable HTTP 传输提供 fnOS 系统管理能力的 MCP 工具服务器。
内置 trimrpc 二进制协议栈，通过 Unix Domain Socket 与本机 fnOS
RPC 服务通信。零外部依赖，仅使用 Python 标准库。
可用工具:

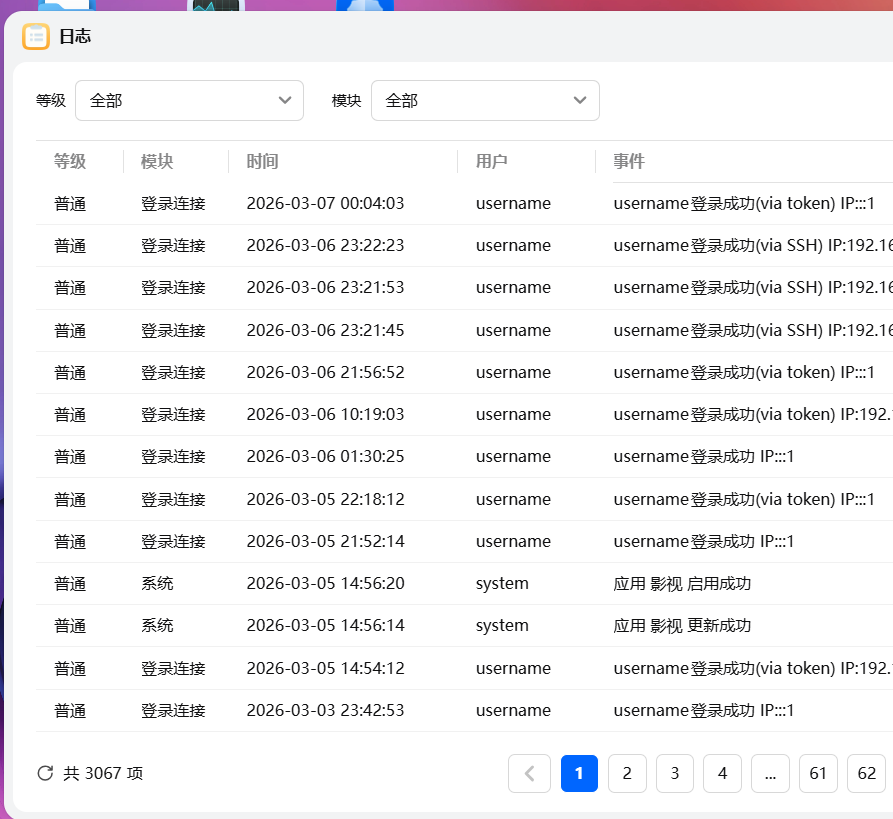

get_system_logs 获取系统事件日志 (登录、配置变更、SSH 等)
trimrpc_call 通用 trimrpc RPC 调用 (任意服务/方法)
discover_services 发现可用的 RPC 服务
用法:
python3 report-trimrpc-mcp-202603062124.py # 默认 0.0.0.0:9800
python3 report-trimrpc-mcp-202603062124.py --port 8080 # 自定义端口
python3 report-trimrpc-mcp-202603062124.py --host 127.0.0.1 # 仅本机
python3 report-trimrpc-mcp-202603062124.py --list-tools # 列出工具
python3 report-trimrpc-mcp-202603062124.py -v # 调试日志
MCP 客户端配置 (Claude Code settings / .mcp.json):
{
"mcpServers": {
"fnos": {
"url": "http://:9800/mcp"
}
}
}
"""
import sys
import json
import struct
import socket
import os
import time
import uuid
import threading
import logging
from http.server import HTTPServer, BaseHTTPRequestHandler
from socketserver import ThreadingMixIn
# ═══════════════════════════════════════════════════════════════════
# 日志
# ═══════════════════════════════════════════════════════════════════
logging.basicConfig(
stream=sys.stderr,
level=logging.INFO,
format='[trimrpc-mcp] %(levelname)s %(message)s',
)
log = logging.getLogger('trimrpc-mcp')
# ═══════════════════════════════════════════════════════════════════
# trimrpc 二进制协议核心
#
# 协议格式: 30 字节固定头部 + 4 段变长数据
# 传输层: Unix Domain Socket (AF_UNIX, SOCK_STREAM)
# ═══════════════════════════════════════════════════════════════════
CPRT_MAGIC = 0x54525043 # "CPRT" little-endian
PROTOCOL_VERSION = 1
HEADER_SIZE = 30
BROKER_SERVICE = "com.trim.rpcbroker"
BROKER_UDS_PATHS = [
"/run/trim_app_cgi/rpcbroker",
]
DEFAULT_TIMEOUT = 10
SERVICE_PREFIX = "com."
MAX_SERVICE_NAME_LEN = 128
_sid_counter = 0
_sid_lock = threading.Lock()
def _next_session_id():
global _sid_counter
with _sid_lock:
_sid_counter += 1
return _sid_counter
class RpcPacket:
"""
trimrpc 二进制数据包。
头部 (30 字节, little-endian):
magic(4) + version(2) + session_id(8) +
data_len(2) + token_len(2) +
extra_data_len(4) + reserved(4) + extra_data2_len(4)
数据段: [data] + [token] + [extra_data(JSON 载荷)] + [extra_data2]
"""
HEADER_FMT = '<IHQHHIII'
def __init__(self):
self.magic = CPRT_MAGIC
self.version = PROTOCOL_VERSION
self.session_id = 0
self.data = b'' # Section 0: 调用方 UUID
self.token = b'' # Section 1: 认证令牌
self.extra_data = b'' # Section 2: JSON 载荷
self.extra_data2 = b'' # Section 3: 扩展数据
def serialize(self):
header = struct.pack(
self.HEADER_FMT,
self.magic, self.version, self.session_id,
len(self.data), len(self.token),
len(self.extra_data), 0, len(self.extra_data2),
)
return header + self.data + self.token + self.extra_data + self.extra_data2
@classmethod
def deserialize(cls, raw):
if len(raw) < HEADER_SIZE:
raise ValueError(f"数据不足: 需要 {HEADER_SIZE} 字节, 实际 {len(raw)}")
pkt = cls()
(
pkt.magic, pkt.version, pkt.session_id,
d_len, t_len, e_len, _, e2_len,
) = struct.unpack(cls.HEADER_FMT, raw[:HEADER_SIZE])
if pkt.magic != CPRT_MAGIC:
raise ValueError(f"协议魔数不匹配: 0x{pkt.magic:08X}")
off = HEADER_SIZE
pkt.data = raw[off:off + d_len]; off += d_len
pkt.token = raw[off:off + t_len]; off += t_len
pkt.extra_data = raw[off:off + e_len]; off += e_len
pkt.extra_data2 = raw[off:off + e2_len]
return pkt
def get_json_payload(self):
if self.extra_data:
return self.extra_data.decode('utf-8', errors='replace')
if self.data:
return self.data.decode('utf-8', errors='replace')
return ''
def _recv_all(sock, size, timeout=DEFAULT_TIMEOUT):
sock.settimeout(timeout)
buf = b''
while len(buf) < size:
try:
chunk = sock.recv(size - len(buf))
except socket.timeout:
raise TimeoutError(f"接收超时 ({timeout}s): {len(buf)}/{size} 字节")
if not chunk:
raise ConnectionError(f"连接断开: {len(buf)}/{size} 字节")
buf += chunk
return buf
def send_rpc_packet(uds_path, packet, timeout=DEFAULT_TIMEOUT):
"""通过 Unix Domain Socket 发送 RpcPacket 并接收响应"""
sock = socket.socket(socket.AF_UNIX, socket.SOCK_STREAM)
sock.settimeout(timeout)
try:
sock.connect(uds_path)
sock.sendall(packet.serialize())
resp_header = _recv_all(sock, HEADER_SIZE, timeout)
(
_, _, _, d_len, t_len, e_len, _, e2_len,
) = struct.unpack(RpcPacket.HEADER_FMT, resp_header)
total = d_len + t_len + e_len + e2_len
resp_body = _recv_all(sock, total, timeout) if total > 0 else b''
return RpcPacket.deserialize(resp_header + resp_body)
except FileNotFoundError:
raise ConnectionError(f"UDS 不存在: {uds_path} (RPC 服务可能未运行)")
except PermissionError:
raise ConnectionError(f"无权限连接: {uds_path}")
finally:
sock.close()
def build_reqid():
ts = int(time.time() * 1000000)
return format(ts & 0xFFFFFFFFFFFFFFFF, '016x')
def build_rpc_request(service, method, params=None, caller_uuid=None):
if len(service) > MAX_SERVICE_NAME_LEN:
raise ValueError(f"服务名超过 {MAX_SERVICE_NAME_LEN} 字节")
if not service.startswith(SERVICE_PREFIX):
raise ValueError(f'服务名必须以 "{SERVICE_PREFIX}" 开头')
json_payload = {
"data": {
"req": f"{service}.{method}",
"pid": os.getpid(),
"reqid": build_reqid(),
}
}
if params:
json_payload["data"].update(params)
pkt = RpcPacket()
pkt.session_id = _next_session_id()
pkt.data = (caller_uuid or str(uuid.uuid4()).upper()).encode('utf-8')
pkt.extra_data = json.dumps(json_payload, separators=(',', ':')).encode('utf-8')
return pkt
class RpcClient:
"""trimrpc RPC 客户端 — 自动服务发现与调用"""
def __init__(self, caller_uuid=None, caller_service="com.trim.pyclient",
timeout=DEFAULT_TIMEOUT, broker_uds=None):
self.uuid = caller_uuid or str(uuid.uuid4()).upper()
self.caller_service = caller_service
self.timeout = timeout
self.broker_uds = broker_uds or self._find_broker()
self.services = {
BROKER_SERVICE: {"name": BROKER_SERVICE, "uds": self.broker_uds},
}
def _find_broker(self):
for p in BROKER_UDS_PATHS:
if os.path.exists(p):
return p
return BROKER_UDS_PATHS[0]
def apply_permission(self, target_services):
if isinstance(target_services, str):
target_services = [target_services]
pkt = build_rpc_request(
BROKER_SERVICE, "apply",
{"services": target_services},
caller_uuid=self.uuid,
)
resp_pkt = send_rpc_packet(self.broker_uds, pkt, self.timeout)
resp_str = resp_pkt.get_json_payload()
if not resp_str:
raise RuntimeError("Broker 返回空响应")
resp = json.loads(resp_str)
resp_data = resp.get("data", resp)
if resp_data.get("result") != "succ":
raise RuntimeError(
f"ApplyPermission 失败: {json.dumps(resp_data, ensure_ascii=False)}"
)
for svc in resp_data.get("data", []):
sid = svc.get("id", "")
if sid:
self.services[sid] = svc
return resp_data.get("data", [])
def call(self, service, method, params=None):
svc_info = self.services.get(service)
if not svc_info:
self.apply_permission([service])
svc_info = self.services.get(service)
if not svc_info:
raise RuntimeError(f"服务未找到: {service}")
uds_path = svc_info.get("uds", "")
if not uds_path:
raise RuntimeError(f"服务 {service} 无 UDS 路径")
pkt = build_rpc_request(service, method, params, caller_uuid=self.uuid)
token = svc_info.get("token", "")
if token:
pkt.token = token.encode('utf-8')
resp_pkt = send_rpc_packet(uds_path, pkt, self.timeout)
resp_str = resp_pkt.get_json_payload()
return json.loads(resp_str) if resp_str else {}
# ═══════════════════════════════════════════════════════════════════
# MCP 工具定义与实现
# ═══════════════════════════════════════════════════════════════════
MCP_TOOLS = [
{
"name": "get_system_logs",
"description": (
"获取 fnOS 系统事件日志。返回系统操作记录，包括用户登录、"
"系统配置变更、SSH 连接等事件。支持分页和按模块筛选。"
),
"inputSchema": {
"type": "object",
"properties": {
"page": {
"type": "integer",
"description": "页码，从 1 开始",
"default": 1,
},
"pageSize": {
"type": "integer",
"description": "每页条数，范围 1-100",
"default": 20,
},
"module": {
"type": "integer",
"description": "模块筛选: -1 表示全部模块",
"default": -1,
},
},
},
},
{
"name": "trimrpc_call",
"description": (
"通用 fnOS trimrpc RPC 调用。通过 RPC Broker 调用 fnOS 上的"
"任意已注册 RPC 服务。服务名必须以 'com.' 开头。"
"示例: service='com.trim.storage', method='get_info'"
),
"inputSchema": {
"type": "object",
"properties": {
"service": {
"type": "string",
"description": "目标服务名，如 'com.trim.storage'",
},
"method": {
"type": "string",
"description": "方法名，如 'get_info' 或 'common.list'",
},
"params": {
"type": "object",
"description": "调用参数",
"default": {},
},
},
"required": ["service", "method"],
},
},
{
"name": "discover_services",
"description": (
"发现 fnOS 上可用的 RPC 服务。查询 RPC Broker 获取服务路由信息，"
"包括 UDS 路径、IP、类型、认证令牌等。"
),
"inputSchema": {
"type": "object",
"properties": {
"services": {
"type": "array",
"items": {"type": "string"},
"description": (
"要查询的服务名列表。"
"示例: ['com.trim.storage', 'com.trim.main']"
),
"default": [],
},
},
},
},
]
# ── 全局 RPC 客户端 ──
_rpc_client = None
_rpc_client_lock = threading.Lock()
_broker_uds_override = None # 由 --broker-uds 设置
def _get_client():
global _rpc_client
with _rpc_client_lock:
if _rpc_client is None:
_rpc_client = RpcClient(broker_uds=_broker_uds_override)
log.info(f"RPC 客户端初始化, Broker: {_rpc_client.broker_uds}")
return _rpc_client
# ── 工具处理函数 ──
def tool_get_system_logs(arguments):
page = max(1, arguments.get("page", 1))
page_size = max(1, min(100, arguments.get("pageSize", 20)))
module = arguments.get("module", -1)
result = _get_client().call(
"com.trim.eventlogger",
"common.list",
{"pageSize": page_size, "page": page, "module": module},
)
return json.dumps(result, indent=2, ensure_ascii=False)
def tool_trimrpc_call(arguments):
service = arguments.get("service", "")
method = arguments.get("method", "")
params = arguments.get("params", {})
if not service:
raise ValueError("缺少必填参数 'service'")
if not method:
raise ValueError("缺少必填参数 'method'")
result = _get_client().call(service, method, params if params else None)
return json.dumps(result, indent=2, ensure_ascii=False)
def tool_discover_services(arguments):
services = arguments.get("services", [])
client = _get_client()
if not services:
try:
pkt = build_rpc_request(
BROKER_SERVICE, "list", {}, caller_uuid=client.uuid,
)
resp_pkt = send_rpc_packet(client.broker_uds, pkt, client.timeout)
resp_str = resp_pkt.get_json_payload()
if resp_str:
return json.dumps(json.loads(resp_str), indent=2, ensure_ascii=False)
except Exception:
pass
services = [BROKER_SERVICE]
result = client.apply_permission(services)
return json.dumps(result, indent=2, ensure_ascii=False)
TOOL_HANDLERS = {
"get_system_logs": tool_get_system_logs,
"trimrpc_call": tool_trimrpc_call,
"discover_services": tool_discover_services,
}
# ═══════════════════════════════════════════════════════════════════
# MCP JSON-RPC 处理
# ═══════════════════════════════════════════════════════════════════
MCP_PROTOCOL_VERSION = "2024-11-05"
SERVER_INFO = {"name": "trimrpc-mcp", "version": "1.0.0"}
def process_jsonrpc(msg):
"""
处理一条 JSON-RPC 2.0 消息，返回响应 dict 或 None (通知无需响应)。
"""
msg_id = msg.get("id")
method = msg.get("method", "")
params = msg.get("params") or {}
# 通知 (无 id) 不需要回复
if msg_id is None:
log.debug(f"通知: {method}")
return None
def _result(result):
return {"jsonrpc": "2.0", "id": msg_id, "result": result}
def _error(code, message):
return {"jsonrpc": "2.0", "id": msg_id, "error": {"code": code, "message": message}}
if method == "initialize":
return _result({
"protocolVersion": MCP_PROTOCOL_VERSION,
"capabilities": {"tools": {}},
"serverInfo": SERVER_INFO,
})
if method == "ping":
return _result({})
if method == "tools/list":
return _result({"tools": MCP_TOOLS})
if method == "tools/call":
tool_name = params.get("name", "")
arguments = params.get("arguments", {})
handler = TOOL_HANDLERS.get(tool_name)
if not handler:
return _error(-32602, f"未知工具: {tool_name}")
try:
text = handler(arguments)
return _result({"content": [{"type": "text", "text": text}]})
except Exception as e:
log.error(f"工具 {tool_name} 执行失败: {e}")
return _result({
"content": [{"type": "text", "text": f"错误: {e}"}],
"isError": True,
})
return _error(-32601, f"方法不存在: {method}")
# ═══════════════════════════════════════════════════════════════════
# HTTP 传输层 (Streamable HTTP)
#
# POST /mcp → 发送 JSON-RPC 请求, 直接返回 JSON 响应
# ═══════════════════════════════════════════════════════════════════
class ThreadedHTTPServer(ThreadingMixIn, HTTPServer):
daemon_threads = True
allow_reuse_address = True
class McpRequestHandler(BaseHTTPRequestHandler):
def log_message(self, fmt, *args):
log.debug(f"{self.client_address[0]} {fmt % args}")
def _cors_headers(self):
self.send_header('Access-Control-Allow-Origin', '*')
self.send_header('Access-Control-Allow-Methods', 'GET, POST, DELETE, OPTIONS')
self.send_header('Access-Control-Allow-Headers', 'Content-Type')
def _json_response(self, code, obj):
body = json.dumps(obj, ensure_ascii=False).encode('utf-8')
self.send_response(code)
self.send_header('Content-Type', 'application/json')
self.send_header('Content-Length', str(len(body)))
self._cors_headers()
self.end_headers()
self.wfile.write(body)
def do_OPTIONS(self):
self.send_response(200)
self._cors_headers()
self.end_headers()
def do_DELETE(self):
self.send_response(200)
self._cors_headers()
self.end_headers()
def do_GET(self):
self._json_response(200, {
"name": SERVER_INFO["name"],
"version": SERVER_INFO["version"],
"status": "running",
"tools": [t["name"] for t in MCP_TOOLS],
})
def do_POST(self):
content_len = int(self.headers.get('Content-Length', 0))
if content_len == 0:
self._json_response(400, {"error": "Empty body"})
return
try:
body = self.rfile.read(content_len)
msg = json.loads(body)
except (json.JSONDecodeError, UnicodeDecodeError) as e:
self._json_response(400, {"error": f"Invalid JSON: {e}"})
return
log.debug(f"← {msg.get('method', '?')} (id={msg.get('id')})")
response = process_jsonrpc(msg)
if response is not None:
self._json_response(200, response)
else:
self.send_response(202)
self._cors_headers()
self.end_headers()
# ═══════════════════════════════════════════════════════════════════
# 入口
# ═══════════════════════════════════════════════════════════════════
def main():
import argparse
parser = argparse.ArgumentParser(
description="trimrpc MCP Server — fnOS 系统管理工具",
formatter_class=argparse.RawDescriptionHelpFormatter,
epilog="""
示例:
%(prog)s # 默认 0.0.0.0:9800
%(prog)s --port 8080 # 自定义端口
%(prog)s --host 127.0.0.1 # 仅允许本机访问
%(prog)s --broker-uds /tmp/rpc/rpcbroker
MCP 配置:
{"mcpServers": {"fnos": {"url": "http://:9800/mcp"}}}
""",
)
parser.add_argument('--host', default='0.0.0.0', help='监听地址 (默认: 0.0.0.0)')
parser.add_argument('--port', type=int, default=9800, help='监听端口 (默认: 9800)')
parser.add_argument('--broker-uds', default=None, help='指定 RPC Broker UDS 路径')
parser.add_argument('--list-tools', action='store_true', help='列出可用工具并退出')
parser.add_argument('-v', '--verbose', action='store_true', help='调试日志')
args = parser.parse_args()
if args.verbose:
logging.getLogger().setLevel(logging.DEBUG)
if args.list_tools:
print("trimrpc MCP Server 可用工具:\n")
for t in MCP_TOOLS:
print(f" {t['name']}")
print(f" {t['description']}")
schema = t.get("inputSchema", {})
props = schema.get("properties", {})
if props:
print(" 参数:")
for k, v in props.items():
req = "必填" if k in schema.get("required", []) else "可选"
desc = v.get("description", "")
default = v.get("default")
default_str = f", 默认={default}" if default is not None else ""
print(f" {k} ({req}{default_str}): {desc}")
print()
return
global _broker_uds_override
_broker_uds_override = args.broker_uds
server = ThreadedHTTPServer((args.host, args.port), McpRequestHandler)
host_display = args.host if args.host != '0.0.0.0' else ''
print(f"trimrpc MCP Server 已启动")
print(f" 监听: http://{args.host}:{args.port}")
print(f" 端点: POST http://{host_display}:{args.port}/mcp")
print(f" 工具: {', '.join(t['name'] for t in MCP_TOOLS)}")
if args.broker_uds:
print(f" Broker: {args.broker_uds}")
print(f'\n MCP 配置: {{"mcpServers": {{"fnos": {{"url": "http://{host_display}:{args.port}/mcp"}}}}}}')
print()
try:
server.serve_forever()
except KeyboardInterrupt:
print("\n正在关闭...")
server.shutdown()
if __name__ == '__main__':
main()
```
</details>
# 部署
将代码复制到任意可执行目录中，这里文件名为：
`report-trimrpc-mcp-202603062124.py`
直接运行即可：
```text
Linux fnos 6.12.18-trim #211 SMP PREEMPT_DYNAMIC Fri Jan 30 17:47:53 CST 2026 x86_64
Last login: Fri Mar 6 23:21:46 2026 from 192.168.2.12
username@fnos:~$ python3 report-trimrpc-mcp-202603062124.py
trimrpc MCP Server 已启动
监听: http://0.0.0.0:9800
端点: POST http://:9800/mcp
工具: get_system_logs, trimrpc_call, discover_services
MCP 配置: {"mcpServers": {"fnos": {"url": "http://:9800/mcp"}}}
```
启动后，一个简单的 MCP HTTP 服务就已经运行，并对外提供三个工具接口：
get_system_logs：获取系统日志
trimrpc_call：通用 RPC 调用
discover_services：发现可用 RPC 服务
# 给AI配置MCP
使用 Claude CLI 添加 MCP 服务：
```shell
claude mcp add --transport http fnos http://192.168.2.254:9800/mcp
```
执行命令后，CLI 会将 MCP 配置写入本地配置文件：
```text
PS C:\> claude mcp add --transport http fnos http://192.168.2.254:9800/mcp
Added HTTP MCP server fnos with URL: http://192.168.2.254:9800/mcp to local config
File modified: C:\Users\admin\.claude.json [project: C:\]
PS C:\> claude mcp get fnos
fnos:
Scope: Local config (private to you in this project)
Status: ✗ Failed to connect
Type: http
URL: http://192.168.2.254:9800/mcp
To remove this server, run: claude mcp remove "fnos" -s local
Assertion failed: !(handle->flags & UV_HANDLE_CLOSING), file src\win\async.c, line 76
```
# 调用MCP能力
我们先看看当前的日志
配置完成后，在 Claude CLI 中即可直接调用 MCP 提供的能力：
让我们直接获取一下日志信息
```text
PS E:\workspace\fnos\demod1> claude
╭─── Claude Code v2.1.70 ───────────────────────────────────────────────────────────────────────────────────────────╮
│ │ Tips for getting started │
│ Welcome back! │ Run /init to create a CLAUDE.md file with instructions for Claude │
│ │ ───────────────────────────────────────────────────────────────── │
│ │ Recent activity │
│ ▐▛███▜▌ │ No recent activity │
│ ▝▜█████▛▘ │ │
│ ▘▘ ▝▝ │ │
│ Opus 4.6 (1M context) · API Usage Billing │ │
│ E:\workspace\fnos\demod1 │ │
╰───────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯
Welcome to Opus 4.6
❯ /mcp
⎿ MCP dialog dismissed
❯ 获取fnos的mcp全部功能，以列表形式列出
● Based on the available MCP tools, here are all fnOS MCP functions:
┌─────┬──────────────────────────────┬──────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│ # │ Function │ Description │
├─────┼──────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ 1 │ mcp__fnos__get_system_logs │ 获取 fnOS 系统事件日志。返回系统操作记录，包括用户登录、系统配置变更、SSH 连接等事件。支持分页和按模块筛选。 │
├─────┼──────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ 2 │ mcp__fnos__trimrpc_call │ 通用 fnOS trimrpc RPC 调用。通过 RPC Broker 调用 fnOS 上的任意已注册 RPC 服务。服务名必须以 com. 开头。 │
├─────┼──────────────────────────────┼──────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ 3 │ mcp__fnos__discover_services │ 发现 fnOS 上可用的 RPC 服务。查询 RPC Broker 获取服务路由信息，包括 UDS 路径、IP、类型、认证令牌等。 │
└─────┴──────────────────────────────┴──────────────────────────────────────────────────────────────────────────────────────────────────────────────┘
参数详情
get_system_logs:
- module (int, 默认 -1) — 模块筛选，-1 表示全部模块
- page (int, 默认 1) — 页码，从 1 开始
- pageSize (int, 默认 20) — 每页条数，范围 1-100
trimrpc_call:
- service (string, 必填) — 目标服务名，如 com.trim.storage
- method (string, 必填) — 方法名，如 get_info
- params (object, 默认 {}) — 调用参数
discover_services:
- services (string[], 默认 []) — 要查询的服务名列表，如 ['com.trim.storage']
核心能力是通过 discover_services 发现可用服务，再通过 trimrpc_call 调用具体服务方法，以及通过 get_system_logs 查看系统日志。
❯ 获取最新的12条日志
● fnos - get_system_logs (MCP)(page: 1, pageSize: 12)
⎿ {
"data": {
"data": {
… +73 lines (ctrl+o to expand)
● 最新 12 条系统日志（共 3067 条）：
┌─────┬─────────────────────┬──────────┬──────┬──────────────────────────────────────┐
│ # │ 时间 │ 用户 │ 模块 │ 事件内容 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 1 │ 2026-03-04 18:44:03 │ username │ 登录 │ 登录成功(via token) IP:::1 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 2 │ 2026-03-04 18:02:23 │ username │ 登录 │ 登录成功(via SSH) IP:192.168.2.12 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 3 │ 2026-03-04 18:01:53 │ username │ 登录 │ 登录成功(via SSH) IP:192.168.2.12 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 4 │ 2026-03-04 18:01:45 │ username │ 登录 │ 登录成功(via SSH) IP:192.168.2.12 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 5 │ 2026-03-04 16:36:52 │ username │ 登录 │ 登录成功(via token) IP:::1 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 6 │ 2026-03-04 04:59:03 │ username │ 登录 │ 登录成功(via token) IP:192.168.2.12 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 7 │ 2026-03-03 20:10:25 │ username │ 登录 │ 登录成功 IP:::1 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 8 │ 2026-03-03 16:58:12 │ username │ 登录 │ 登录成功(via token) IP:::1 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 9 │ 2026-03-03 16:32:14 │ username │ 登录 │ 登录成功 IP:::1 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 10 │ 2026-03-03 09:36:20 │ system │ 系统 │ 应用 影视 启用成功 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 11 │ 2026-03-03 09:36:14 │ system │ 系统 │ 应用 影视 更新成功 │
├─────┼─────────────────────┼──────────┼──────┼──────────────────────────────────────┤
│ 12 │ 2026-03-03 09:34:12 │ username │ 登录 │ 登录成功(via token) IP:192.168.2.217 │
└─────┴─────────────────────┴──────────┴──────┴──────────────────────────────────────┘
❯ discover_services
● fnos - discover_services (MCP)
⎿ {
"data": {
"errno": 100000004,
… +6 lines (ctrl+o to expand)
● 空列表查询失败，让我尝试查询一些常见的 fnOS 服务。
● fnos - discover_services (MCP)(services: ["com.trim.storage","com.trim.main","com.trim.eventlogger","com.trim.docker","com.trim.network","com.trim.user","com.trim.system
","com.trim.app","com.trim.filemanager","com.trim.share","com.trim.rpcbroker","com.trim.notify","com.trim.backup","com.trim.disk","com.trim
.power","com.trim.update","com.trim.samba","com.trim.nfs","com.trim.webdav","com.trim.ddns"])
⎿ [
{
"id": "com.trim.main",
… +31 lines (ctrl+o to expand)
● 发现了部分服务，让我再探索更多。
● fnos - discover_services (MCP)(services: ["com.trim.storage.manager","com.trim.usb","com.trim.raid","com.trim.smart","com.trim.ftp","com.trim.rsync","com.trim.vpn","com.
trim.firewall","com.trim.dns","com.trim.certificate","com.trim.task","com.trim.cron","com.trim.log","com.trim.monitor","com.trim.alert","co
m.trim.plugin","com.trim.appstore","com.trim.vm","com.trim.photo","com.trim.music"])
⎿ []
● fnos - discover_services (MCP)(services: ["com.trim.filemanager.ui","com.trim.file","com.trim.smb","com.trim.afp","com.trim.iscsi","com.trim.power.manager","com.trim.acc
ount","com.trim.auth","com.trim.gateway","com.trim.proxy","com.trim.scheduler","com.trim.media","com.trim.download","com.trim.sync","com.tr
im.cloud","com.trim.notification","com.trim.hardware","com.trim.firmware","com.trim.config","com.trim.service"])
⎿ []
● 以下是在 fnOS 上发现的可用 RPC 服务：
┌─────┬──────────────────────┬─────────────────────────┬───────────────────────────────┬──────┐
│ # │ 服务 ID │ 名称 │ UDS 路径 │ 类型 │
├─────┼──────────────────────┼─────────────────────────┼───────────────────────────────┼──────┤
│ 1 │ com.trim.main │ TRIM Service │ /run/trim_srv.socket │ 1 │
├─────┼──────────────────────┼─────────────────────────┼───────────────────────────────┼──────┤
│ 2 │ com.trim.eventlogger │ Logger Service │ /run/trim_app_cgi/eventlogger │ 0 │
├─────┼──────────────────────┼─────────────────────────┼───────────────────────────────┼──────┤
│ 3 │ com.trim.network │ Network Manager Service │ /run/trim_app_cgi/network │ 0 │
├─────┼──────────────────────┼─────────────────────────┼───────────────────────────────┼──────┤
│ 4 │ com.trim.share │ Share File Service │ /run/trim_app_cgi/share │ 0 │
└─────┴──────────────────────┴─────────────────────────┴───────────────────────────────┴──────┘
共发现 4 个已注册的 RPC 服务：
- com.trim.main — 核心主服务
- com.trim.eventlogger — 事件日志服务（系统日志查询）
- com.trim.network — 网络管理服务
- com.trim.share — 文件共享服务
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────── ▪▪▪ ─
❯ 调用 com.trim.main 的方法看看有哪些功能
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
? for shortcuts
```
# 结束语
MCP 的出现，使大模型具备了调用外部服务的能力。
从某种意义上来说，这让模型不再只是“回答问题”，而是开始具备与真实系统交互的能力。
不过，这也带来了新的问题。
如果某一天 AI 误操作，或者逻辑出现偏差，通过 MCP 调用接口删除了系统中的关键数据，该如何处理？
在无法很好解决这种风险之前，大模型与现实系统之间的深度交互，仍然需要谨慎对待。
不过在考虑AI之前，不知道本地应用如果直接调用trimrpc会有应用中心上架的合规风险吗？
```text
username@fnos:~$ ls -la /run/trim_app_cgi/rpcbroker
srwxrw-rw- 1 root root 0 Feb 27 10:37 /run/trim_app_cgi/rpcbroker
```
这些都是废话，不建议浪费时间看
# trimrpc
## 0. 术语缩写
| 缩写 | 含义 |
|------|------|
| SSO | Small String Optimization, libstdc++ 在 `sizeof(std::string) = 32` 时内联 15 字节以下字符串 |
| RB-tree | `std::_Rb_tree`, GCC libstdc++ 红黑树实现, 用于 `std::map` |
| DCL | Double-Checked Locking, 双重检查锁定单例模式 |
| UDS | Unix Domain Socket |
| vtable | C++ 虚函数表, 通过 `[rdi]` 间接调用 |
| PLT/GOT | Procedure Linkage Table / Global Offset Table, ELF 延迟绑定机制 |
---
## 1. 体系结构概述
trimrpc 是 fnOS 自研的本地 IPC 框架。客户端通过 `RpcClient` API 向目标服务发起 RPC 调用, 底层通过 UDS 传输二进制编码的数据包。框架支持双协议栈: **RpcPacket** (30 字节固定头, 面向 AppCgi 型服务, `ServiceType=0`) 和 **TrimSrv** (12 字节头, 面向 TrimSrv 型服务, `ServiceType=1`)。
所有服务通过中央 Broker (`/run/trim_app_cgi/rpcbroker`) 进行注册与发现。客户端先向 Broker 申请权限获取目标服务的 UDS 路径和服务类型, 随后直连目标服务进行 RPC 通信 — 这是服务发现模式, Broker 不参与后续数据转发。
```
调用层 传输层
┌───────────────────────┐ ┌──────────────────────────────┐
│ RpcClient (0x259b0) │ │ RpcConnections (singleton) │
│ ├ Call() 0x25bf0 │ ─Caller──▶│ ├ Init() 0x196b0 │
│ ├ Apply() 0x27740 │ 0x15480 │ ├ Connect() 0x1a920 │
│ └ Verify 0x256c0 │ │ ├ Send() 0x192d0 │
└───────────────────────┘ │ └ OnRecv() 0x17490 │
└───────────┬────────────────┘
│ ne* 网络引擎
▼
Unix Domain Socket
/var/run/rpc/
```
---
## 2. RpcPacket 二进制协议解析
### 2.1 RpcPacket::RpcPacket() — 构造函数 @ 0x1DDF0
此函数初始化一个 0xA8 字节的 RpcPacket 对象, 写入 magic 常量和协议版本, 并设置四个 SSO 字符串的内联指针。
```asm
; trimrpc::RpcPacket::RpcPacket(void)
; 对象大小 = 0xA8 (168 字节)
; rdi = this 指针
_ZN7trimrpc9RpcPacketC2Ev:
1ddf0 mov rax, cs:_ZTVN7trimrpc9RpcPacketE_ptr ; 加载 RpcPacket vtable 地址
1ddf7 mov dword ptr [rdi+8], 54525043h ; [this+0x08] = magic = 0x54525043
; 即 ASCII "CPRT" (little-endian)
1ddfe mov qword ptr [rdi+10h], 0 ; [this+0x10] = session_id = 0
1de06 add rax, 10h ; 跳过 RTTI 偏移, 指向第一个虚函数
1de0a mov qword ptr [rdi+18h], 0 ; [this+0x18] = data_len/token_len = 0
1de12 mov [rdi], rax ; [this+0x00] = vtable 指针
; version 字段 (2 字节)
1de15 mov eax, 1
1de1a mov [rdi+0Ch], ax ; [this+0x0C] = version = 1
; 初始化四个 SSO 字符串的内联缓冲区指针
; 每个 std::string 占 32 字节: [ptr(8) + size(8) + inline_buf(16)]
1de1e lea rax, [rdi+38h] ; data 字符串的内联缓冲区
1de22 mov [rdi+28h], rax ; [this+0x28].ptr = &this->inline_buf_data
1de26 lea rax, [rdi+58h] ; token 字符串
1de2a mov [rdi+48h], rax ; [this+0x48].ptr = &this->inline_buf_token
1de2e lea rax, [rdi+78h] ; extra_data 字符串
1de32 mov [rdi+68h], rax ; [this+0x68].ptr = &this->inline_buf_extra
1de36 lea rax, [rdi+98h] ; extra_data2 字符串
1de3d mov [rdi+88h], rax ; [this+0x88].ptr = &this->inline_buf_extra2
; reserved 字段
1de44 mov eax, cs:dword_315F4 ; 加载全局默认 reserved 值
1de4a mov dword ptr [rdi+24h], 0 ; [this+0x24] = extra_data2_len = 0
; 将四个字符串置空 (size=0, inline_buf[0]='\0')
1de51 mov qword ptr [rdi+30h], 0 ; data.size = 0
1de59 mov byte ptr [rdi+38h], 0 ; data.inline_buf[0] = '\0'
1de5d mov qword ptr [rdi+50h], 0 ; token.size = 0
1de65 mov byte ptr [rdi+58h], 0 ; token.inline_buf[0] = '\0'
1de69 mov qword ptr [rdi+70h], 0 ; extra_data.size = 0
1de71 mov byte ptr [rdi+78h], 0 ; extra_data.inline_buf[0] = '\0'
1de75 mov qword ptr [rdi+90h], 0 ; extra_data2.size = 0
1de80 mov byte ptr [rdi+98h], 0 ; extra_data2.inline_buf[0] = '\0'
1de87 mov [rdi+20h], eax ; [this+0x20] = reserved (从全局)
1de8a retn
```
**对象内存布局 (0xA8 字节)**:
```
偏移 大小 字段
───────── ───── ──────────────────────────────
0x00 8 vtable*
0x08 4 magic = 0x54525043 ("CPRT")
0x0C 2 version = 1
0x0E 2 (padding)
0x10 8 session_id (8 字节会话标识)
0x18 2 data_len
0x1A 2 token_len
0x1C 4 extra_data_len
0x20 4 reserved
0x24 4 extra_data2_len
0x28 32 std::string data (JSON 请求/响应)
0x48 32 std::string token (UUID / 认证令牌)
0x68 32 std::string extra_data
0x88 32 std::string extra_data2
```
### 2.2 RpcPacket::DeserializeHeader() @ 0x1DEA0
解析 30 字节的网络字节流到 RpcPacket 对象的头部字段。
```asm
; trimrpc::RpcPacket::DeserializeHeader(const char* buf, uint len)
; rdi = this, rsi = buf 指向 30 字节原始头部
_ZN7trimrpc9RpcPacket17DeserializeHeaderEPKcj:
1dea0 mov eax, [rsi] ; eax = *(uint32_t*)(buf+0) = magic
1dea2 mov [rdi+8], eax ; this->magic = magic
1dea5 movzx eax, word ptr [rsi+4] ; eax = *(uint16_t*)(buf+4) = version
1dea9 mov [rdi+0Ch], ax ; this->version = version
1dead mov rax, [rsi+6] ; rax = *(uint64_t*)(buf+6) = session_id
1deb1 mov [rdi+10h], rax ; this->session_id = session_id
1deb5 movzx eax, word ptr [rsi+0Eh] ; eax = *(uint16_t*)(buf+14) = data_len
1deb9 mov [rdi+18h], ax ; this->data_len = data_len
1debd movzx eax, word ptr [rsi+10h] ; eax = *(uint16_t*)(buf+16) = token_len
1dec1 mov [rdi+1Ah], ax ; this->token_len = token_len
1dec5 mov eax, [rsi+12h] ; eax = *(uint32_t*)(buf+18) = extra_data_len
1dec8 mov [rdi+1Ch], eax ; this->extra_data_len = extra_data_len
1decb mov eax, [rsi+16h] ; eax = *(uint32_t*)(buf+22) = reserved/flags
1dece mov [rdi+20h], eax ; this->reserved = reserved
1ded1 mov eax, [rsi+1Ah] ; eax = *(uint32_t*)(buf+26) = extra_data2_len
1ded4 mov [rdi+24h], eax ; this->extra_data2_len = extra_data2_len
1ded7 retn
```
**头部线格式 (30 字节, 无对齐填充)**:
```
Byte: 0 1 2 3 4 5 6 7 8 9 A B C D E F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D
├──magic──┤ ├vers┤ ├───────session_id────────┤ ├dlen┤ ├tlen┤ ├─extra_len─┤ ├─reserved──┤ ├─extra2_len┤
```
### 2.3 RpcPacket::Serialize() @ 0x1DC30
将 RpcPacket 对象序列化为网络传输的二进制字符串: 30 字节头 + data + token + extra_data + extra_data2。
```asm
; trimrpc::RpcPacket::Serialize(void) -> std::string
; rdi = 返回值 (std::string*), rsi = this
_ZN7trimrpc9RpcPacket9SerializeB5cxx11Ev:
1dc30 push r12
1dc32 push rbp
1dc33 mov rbp, rdi ; rbp = 返回 string 对象指针
1dc36 push rbx
1dc37 mov rbx, rsi ; rbx = this (RpcPacket*)
; 将各数据段长度写入头部字段
1dc3a mov rax, [rsi+30h] ; rax = data.size()
1dc3e mov rcx, [rsi+50h] ; rcx = token.size()
1dc42 mov rdi, [rbx] ; rdi = vtable*
1dc45 mov [rsi+18h], ax ; this->data_len = (uint16_t)data.size()
1dc49 mov rdx, [rbx+70h] ; rdx = extra_data.size()
1dc4d mov [rsi+1Ah], cx ; this->token_len = (uint16_t)token.size()
1dc51 mov r8, [rdi+28h] ; r8 = vtable->data_length (虚函数指针)
1dc55 lea rdi, data_length_func ; rdi = &RpcPacket::data_length 静态地址
1dc5c mov rsi, [rsi+90h] ; rsi = extra_data2.size()
1dc63 mov [rbx+1Ch], edx ; this->extra_data_len = extra_data.size()
1dc66 mov [rbx+24h], esi ; this->extra_data2_len = extra_data2.size()
; 检查是否是基类的 data_length 实现 (非虚覆盖)
1dc69 cmp r8, rdi
1dc6c jnz loc_1DDD0 ; 若被覆盖, 走虚调用路径
; 计算总长度 = 0x1E + data_len + token_len + extra_data_len + extra_data2_len
1dc72 movzx eax, ax ; data_len
1dc75 movzx ecx, cx ; token_len
1dc78 add edx, esi ; extra_data_len + extra_data2_len
1dc7a add eax, ecx ; data_len + token_len
1dc7c add eax, edx ; + extra sizes
1dc7e lea rdi, [rbp+10h] ; rdi = 返回 string 的内联缓冲区
1dc82 lea r12d, [rax+1Eh] ; r12 = total_len = payload + 30 字节头
1dc86 mov [rbp+0], rdi ; string.ptr = inline buf (SSO 尝试)
1dc8a cmp r12, 0Fh
1dc8e ja loc_1DDA0 ; 超过 15 字节, 堆分配
; 分配完毕后填充 30 字节头部
1dcaa mov eax, [rbx+8] ; magic
1dcad add rdi, 1Eh ; rdi 指向头部之后 = 数据区起始
1dcb1 mov [rdi-1Eh], eax ; 写入 magic @ offset 0
1dcb4 movzx eax, word ptr [rbx+0Ch]
1dcb8 mov [rdi-1Ah], ax ; 写入 version @ offset 4
1dcbc mov rax, [rbx+10h]
1dcc0 mov [rdi-18h], rax ; 写入 session_id @ offset 6
1dcc4 movzx eax, word ptr [rbx+18h]
1dcc8 mov rdx, [rbx+30h] ; rdx = data.size()
1dccc mov [rdi-10h], ax ; 写入 data_len @ offset 14
1dcd0 movzx eax, word ptr [rbx+1Ah]
1dcd4 mov [rdi-0Eh], ax ; 写入 token_len @ offset 16
1dcd8 mov eax, [rbx+1Ch]
1dcdb mov [rdi-0Ch], eax ; 写入 extra_data_len @ offset 18
1dcde mov eax, [rbx+20h]
1dce1 mov [rdi-8], eax ; 写入 reserved @ offset 22
1dce4 mov eax, [rbx+24h]
1dce7 mov [rdi-4], ax ; 写入 extra_data2_len @ offset 26
; (注: 仅写 2 字节, 高 2 字节来自对齐)
; 依次 memcpy 四个数据段
1dceb test rdx, rdx ; data.size() == 0?
1dcee jnz loc_1DD80 ; 有数据则 memcpy data.c_str()
1dcf4 mov rdx, [rbx+50h] ; token.size()
1dcf8 test rdx, rdx
1dcfb jnz loc_1DD60 ; memcpy token
1dcfd mov rdx, [rbx+70h] ; extra_data.size()
1dd01 test rdx, rdx
1dd04 jnz loc_1DD38 ; memcpy extra_data
1dd06 mov rdx, [rbx+90h] ; extra_data2.size()
1dd0d test rdx, rdx
1dd10 jnz loc_1DD20 ; memcpy extra_data2
1dd12 mov rax, rbp ; 全部为空, 直接返回
1dd15 pop rbx
1dd16 pop rbp
1dd17 pop r12
1dd19 retn
```
### 2.4 TrimSrvResponsePacket::DeserializeHeader() @ 0x21320
TrimSrv 协议的 12 字节头部解析。协议设计极简 — 无魔数校验, 无版本字段。
```asm
; trimrpc::TrimSrvResponsePacket::DeserializeHeader(const char* buf, uint len)
; rdi = this, rsi = buf (12 字节), edx = len
_ZN7trimrpc21TrimSrvResponsePacket17DeserializeHeaderEPKcj:
21320 push r14
21322 push r13
21324 push r12
21326 mov r12d, edx ; r12d = len (保存用于后续 memcpy)
21329 push rbp
2132a mov rbp, rsi ; rbp = buf
2132d push rbx
2132e mov rbx, rdi ; rbx = this
; 解析 12 字节头部:
; [0..3] uint32 packet_size — 整包大小(含头部 12 字节)
; [4..11] uint64 session_id
21335 mov rax, [rsi+4] ; rax = *(uint64_t*)(buf+4) = session_id
21339 mov r13d, [rsi] ; r13d = *(uint32_t*)(buf+0) = packet_size
21341 mov [rdi+28h], rax ; this->session_id = session_id (offset 0x28)
; 将 packet_size 转换为字符串存入 this->data
; (后续通过 data_length() 虚函数返回 packet_size - 12)
; ... SSO 字符串赋值逻辑 ...
21345 lea r14, [rsp+48h+src+8]
21349 cmp r13, 0Fh
2134d ja loc_21408 ; 大于 SSO 阈值则堆分配
; ... 字符串赋值与 memcpy 完成 ...
; 最终将原始 buf 数据 memcpy 到 this->data 区
213ca add rsp, 20h
213ce mov edx, r12d ; n = len
213d1 mov rsi, rbp ; src = buf
213d4 pop rbx
213dc jmp _memcpy ; 尾调用 memcpy
```
### 2.5 TrimSrvRequestPacket::Serialize() @ 0x163E0
TrimSrv 请求包的序列化极其简单 — 直接返回内部 data 字符串的拷贝, 无额外包装。
```asm
; trimrpc::TrimSrvRequestPacket::Serialize(void) -> std::string
; rdi = 返回 string*, rsi = this
_ZN7trimrpc20TrimSrvRequestPacket9SerializeB5cxx11Ev:
163e0 push r12
163e2 push rbp
163e3 push rbx
163e4 mov rbp, [rsi+10h] ; rbp = this->data.size() (offset 0x10)
163e8 mov rbx, rdi ; rbx = 返回值指针
163eb add rdi, 10h
163ef mov [rbx], rdi ; return_string.ptr = &inline_buf
163f2 mov r12, [rsi+8] ; r12 = this->data.c_str() (offset 0x08)
163f6 cmp rbp, 0Fh
163fa ja loc_16448 ; 大于 15 字节 → 堆分配
163fc cmp rbp, 1
16400 jnz loc_16420 ; != 1 → 可能为 0 或需 memcpy
; 单字节快速路径
16402 movzx eax, byte ptr [r12] ; 读取唯一字节
16407 mov [rbx+10h], al ; 写入内联缓冲区
1640a mov [rbx+8], rbp ; return_string.size = 1
1640e mov rax, rbx
16411 mov byte ptr [rdi+rbp], 0 ; 追加 '\0'
16415 pop rbx
16416 pop rbp
16417 pop r12
16419 retn
; 多字节路径
16420 test rbp, rbp ; size == 0?
16423 jz loc_1640A ; 是, 直接设 size=0
16425 mov rdx, rbp ; n = size
16428 mov rsi, r12 ; src = data.c_str()
1642b call _memcpy ; memcpy(inline_buf, src, n)
16430 mov rdi, [rbx]
16433 mov [rbx+8], rbp ; return_string.size = n
16437 mov rax, rbx
1643a mov byte ptr [rdi+rbp], 0 ; 追加 '\0'
1643e pop rbx
1643f pop rbp
16440 pop r12
16442 retn
; 堆分配路径 (size > 15)
16448 test rbp, rbp
1644b js loc_1647D ; 负值 → basic_string::_M_create 异常
1644d mov rdi, rbp
16450 add rdi, 1 ; 分配 size+1 字节
16456 call __Znwm ; operator new(size+1)
1645b mov [rbx+10h], rbp ; capacity = size
1645f mov rdx, rbp
16462 mov rsi, r12
16465 mov [rbx], rax ; ptr = heap_buf
16468 mov rdi, rax
1646b call _memcpy
16470 mov rdi, [rbx]
16473 jmp loc_16433 ; 设 size 并追加 '\0'
```
---
## 3. RpcClient — 公共 API 层
### 3.1 RpcClient::RpcClient() 构造函数 @ 0x259B0
```asm
; trimrpc::RpcClient::RpcClient(const string& uuid, const string& service_name)
; rdi = this (0x88 字节), rsi = &uuid, rdx = &service_name
_ZN7trimrpc9RpcClientC2ERKNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEES8_:
259b0 push r15
259b2 push r14
259b4 lea r14, [rdi+18h] ; r14 → this->uuid 的内联缓冲区
259b8 push r13
259ba mov r13, rdx ; r13 = &service_name
259bd push r12
259bf mov r12, rsi ; r12 = &uuid
259c2 push rbp
259c3 push rbx
259c4 mov rbx, rdi ; rbx = this
259c7 sub rsp, 8
; 初始化 caller 指针为 NULL
259cb mov rbp, [rsi+8] ; rbp = uuid.size()
259cf mov [rdi+8], r14 ; this->uuid.ptr = &inline_buf
259d3 mov qword ptr [rdi], 0 ; this->caller_ = nullptr (offset 0)
259da mov r15, [rsi] ; r15 = uuid.data()
259dd cmp rbp, 0Fh
259e1 ja loc_25B20 ; uuid > 15 字节 → 堆分配
; uuid SSO 拷贝 (size == 1 快速路径)
259e7 cmp rbp, 1
259eb jnz loc_25B10
259f1 movzx eax, byte ptr [r15]
259f5 mov [rdi+18h], al ; inline_buf[0] = uuid[0]
259f8 mov rax, r14
259fb mov [rbx+10h], rbp ; this->uuid.size = 1
259ff mov byte ptr [rax+rbp], 0 ; '\0' 终止
; 拷贝 service_name 到 this+0x28
25a03 lea rbp, [rbx+38h] ; service_name 内联缓冲区
25a07 mov [rbx+28h], rbp
25a0b mov r15, [r13+0] ; service_name.data()
25a0f mov r13, [r13+8] ; service_name.size()
; ... SSO 拷贝逻辑同上 ...
; 分配内部 Caller 对象 (0xD0 字节)
25a3d pxor xmm0, xmm0
25a42 mov edi, 0D0h ; sizeof(Caller) = 208
; ... call operator new + Caller::Caller() ...
; 最终 this->caller_ = new Caller(uuid)
; 初始化其余字段
; [this+0x48] = error_code = 0
; [this+0x50] = response_string (SSO 空串)
; [this+0x70] = response shared_ptr = {nullptr, nullptr}
; [this+0x84] = pid = getpid()
```
**RpcClient 对象布局 (0x88 = 136 字节)**:
```
偏移 大小 字段
───────── ───── ──────────────────────────
0x00 8 Caller* 指向内部 Caller 对象
0x08 32 std::string uuid
0x28 32 std::string service_name
0x48 4 int32_t error_code
0x4C 4 (padding)
0x50 32 std::string response_string
0x70 16 shared_ptr response (Response 对象)
0x80 4 int32_t last_call_error
0x84 4 int32_t pid (= getpid())
```
### 3.2 RpcClient::VerifyServiceId() @ 0x256C0
验证 RPC 目标服务名的合法性。仅执行两项检查: 长度上限和固定前缀。
```asm
; trimrpc::RpcClient::VerifyServiceId(const string& service_name)
; rdi = this, rsi = &service_name
; 返回: eax = 1 (合法) 或 0 (非法, 并设置 error_code)
_ZN7trimrpc9RpcClient15VerifyServiceIdERKNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEE:
256c0 sub rsp, 8
; —— 检查 1: 长度 ≤ 128 ——
256c4 mov rax, [rsi+8] ; rax = service_name.size()
256c8 cmp rax, 80h ; 与 128 比较
256ce ja loc_25718 ; 超过 → 错误码 5
; —— 检查 2: 前缀 "com." ——
256d0 mov rdx, [rsi] ; rdx = service_name.data()
256d3 cmp rax, 3 ; size <= 3 → 不可能以 "com." 开头
256d7 ja loc_25700 ; size >= 4, 可以检查
; 验证失败 → 错误码 6
256d9 mov dword ptr [rdi+80h], 6 ; this->last_call_error = 6
256e3 lea rsi, aInvalidClientN ; "Invalid client name"
256ea mov edi, 3 ; LOG_ERR
256ef xor eax, eax
256f1 call _syslog ; syslog(LOG_ERR, "Invalid client name")
256f6 xor eax, eax ; return 0 (验证失败)
256f8 add rsp, 8
256fc retn
; 检查前 4 字节 == "com." (0x2E6D6F63, little-endian)
25700 cmp dword ptr [rdx], 2E6D6F63h ; *(uint32_t*)data == "com."
25706 jnz loc_256D9 ; 不匹配 → 错误码 6
25708 mov eax, 1 ; return 1 (验证通过)
2570d add rsp, 8
25711 retn
; 长度超限 → 错误码 5
25718 mov dword ptr [rdi+80h], 5 ; this->last_call_error = 5
25722 lea rsi, aInvalidClientI ; "Invalid client id, exceed the maximum..."
25729 mov edi, 3 ; LOG_ERR
2572e xor eax, eax
25730 call _syslog
25735 jmp loc_256F6 ; return 0
```
**要点**: `0x2E6D6F63` 按小端序分解为 `63 6F 6D 2E` = `c o m .`。验证逻辑仅检查前 4 字节与长度, 不做任何 ACL 或命名空间隔离。
### 3.3 RpcClient::Call(service, method, data) @ 0x25BF0
核心调用入口。验证服务名后委托 `Caller::Call`, 然后根据 `ServiceType` 创建对应的 `Response` 对象。
```asm
; trimrpc::RpcClient::Call(const string& service, const string& method, const string& data)
; rdi = this, rsi = &service, rdx = &method, rcx = &data
_ZN7trimrpc9RpcClient4CallERKNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEES8_S8_:
25bf0 push r15
25bf2 push r14
25bf4 push r13
25bf6 mov r13, rcx ; r13 = &data
25bf9 push r12
25bfb mov r12, rsi ; r12 = &service
25bfe push rbp
25bff mov rbp, rdx ; rbp = &method
25c02 push rbx
25c03 mov rbx, rdi ; rbx = this (RpcClient*)
25c06 sub rsp, 48h
; 步骤 1: 验证服务名
25c0a call _ZN7trimrpc9RpcClient15VerifyServiceIdE... ; VerifyServiceId(service)
25c0f test al, al
25c11 jz loc_25E80 ; 验证失败 → 直接返回错误
; 步骤 2: 调用 Caller::Call
25c17 mov rdi, [rbx] ; rdi = this->caller_
25c1a mov rcx, r13 ; arg4 = data
25c1d mov rdx, rbp ; arg3 = method
25c20 mov rsi, r12 ; arg2 = service
25c23 lea r13, [rsp+78h+src+8]
25c28 call _ZN7trimrpc6Caller4CallE... ; Caller::Call(service, method, data)
; 步骤 3: 保存错误码, 拷贝响应字符串
25c31 mov [rbx+80h], eax ; this->last_call_error = Caller 返回值
25c37 mov rax, [rbx] ; rax = caller_
25c3a mov rbp, [rax+50h] ; rbp = caller->response_data.size()
25c3e mov r14, [rax+48h] ; r14 = caller->response_data.data()
; ... 拷贝 caller->response_data 到 this->response_string (offset 0x50) ...
; 步骤 4: 获取 ServiceType → 创建 Response
25cd3 mov r13, cs:_ZN7trimrpc14RpcConnections9instance_E_ptr
25cda mov rbp, [r13+0] ; rbp = RpcConnections::instance_
25ce2 test rax, rax
25ce5 jz loc_25EC8 ; 单例不存在 → DCL 创建
; 拷贝 service_name, 调用 GetServiceType
; ...
25d32 call _ZN7trimrpc14RpcConnections14GetServiceTypeE... ; GetServiceType(service)
25d37 mov rdi, [rsp+78h+var_58]
25d3c mov ebp, eax ; ebp = service_type
; 步骤 5: Response::Create(type, response_string)
25d51 movzx esi, bp ; arg2 = service_type
25d54 mov rdx, r14 ; arg3 = &response_string
25d57 mov rdi, r12 ; arg1 = 输出 shared_ptr
25d5a call _ZN7trimrpc8Response6CreateE... ; Response::Create(type, data)
; 将 shared_ptr 移入 this->response (offset 0x70)
25d5f movdqa xmm0, xmmword ptr [rsp+78h+var_58]
25d65 mov rbp, [rbx+78h] ; 旧的 shared_ptr 控制块
25d69 pxor xmm1, xmm1
25d6d movaps xmmword ptr [rsp+78h+var_58], xmm1 ; 清零临时 shared_ptr
25d72 movups xmmword ptr [rbx+70h], xmm0 ; this->response = 新 shared_ptr
; ... 释放旧 shared_ptr 引用 ...
```
### 3.4 RpcClient::Call(Request) @ 0x261E0
高层调用入口, 接受 `trimrpc::Request` 对象。
```asm
; trimrpc::RpcClient::Call(const Request& req)
; rdi = this (RpcClient*), rsi = &req
_ZN7trimrpc9RpcClient4CallERKNS_7RequestE:
261e0 push r14
261e2 mov r14, rdi ; r14 = this
261e5 push r13
261e7 push r12
261e9 push rbp
261ea push rbx
261eb mov rbx, rsi ; rbx = &req
261ee sub rsp, 60h
; 步骤 1: 序列化请求
261f2 mov rbp, rsp
261f5 mov rdi, rbp ; rdi = 栈上 string (返回值)
261f8 call _ZNK7trimrpc7Request5BuildB5cxx11Ev ; req.Build() → string
; 步骤 2: 检查 Build 结果
261fd cmp [rsp+var_s8], 0 ; Build 结果的 size == 0?
26203 jnz loc_26215 ; 非空 → 继续
; Build 返回空串 → 检查 error_no
26205 mov rdi, rbx ; rdi = &req
26208 call _ZNK7trimrpc7Request8error_noEv ; req.error_no()
2620d test eax, eax
2620f jnz loc_262B0 ; error_no != 0 → 直接返回错误
; 步骤 3: 提取 method 和 service
26215 lea r13, [rsp+var_s40]
2621a mov rsi, rbx
2621d mov rdi, r13
26220 call _ZNK7trimrpc7Request6methodB5cxx11Ev ; req.method() → string
26225 lea r12, [rsp+var_s20]
2622a mov rsi, rbx
2622d mov rdi, r12
26230 call _ZNK7trimrpc7Request7serviceB5cxx11Ev ; req.service() → string
; 步骤 4: 委托给 Call(service, method, data)
26235 mov rcx, rbp ; data (Build 输出)
26238 mov rdx, r13 ; method
2623b mov rsi, r12 ; service
2623e mov rdi, r14 ; this
26241 call _ZN7trimrpc9RpcClient4CallE... ; Call(service, method, data)
26246 mov rdi, [rsp+var_s20]
2624b mov ebx, eax ; 保存返回值
; 清理三个临时 string
; ... operator delete × 3 ...
2629e add rsp, 60h
262a2 mov eax, ebx ; return error_code
262ac retn
```
---
## 4. Caller — 内部调用核心
### 4.1 Caller::NotifyResult() 回调 @ 0x12860
当 `ne*` 网络引擎接收到响应数据后, 通过此回调唤醒等待中的 `CallOutInSync`。
```asm
; trimrpc::Caller::NotifyResult(ulong session, int error_code, const string& data)
; rdi = this (Caller*), rsi = session_id, edx = error_code, rcx = &data
_ZN7trimrpc6Caller12NotifyResultEmiRKNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEE:
12860 push r15
12862 push r14
12864 lea r14, [rdi+78h] ; r14 = &this->mutex (offset 0x78)
12868 push r13
1286a mov r13d, edx ; r13d = error_code
1286d push r12
1286f push rbp
12870 mov rbp, rcx ; rbp = &data (响应字符串)
12873 push rbx
12874 mov rbx, rdi ; rbx = this
; 加锁
12877 mov rdi, r14 ; mutex
1287a sub rsp, 18h
1287e call _pthread_mutex_lock
12883 test eax, eax
12885 jnz loc_12996 ; 加锁失败 → throw system_error
; 拷贝响应数据到 this->response_data (offset 0x48)
1288b lea rax, [rbx+48h] ; rax = &this->response_data
1288f cmp rbp, rax ; 自赋值检查
12892 jz loc_128C4 ; 是同一个对象 → 跳过拷贝
; std::string 赋值操作 (SSO-aware)
12894 mov rax, [rbx+48h] ; rax = response_data.ptr
12898 lea r15, [rbx+58h] ; r15 = response_data 内联缓冲区
1289c mov r12, [rbp+8] ; r12 = data.size()
128a0 cmp rax, r15 ; 当前是否使用堆内存?
128a3 jz loc_12978 ; 使用 SSO → 容量固定 15
128a9 mov rdx, [rbx+58h] ; rdx = 当前容量
128ad cmp rdx, r12 ; 容量 >= 新数据大小?
128b0 jb loc_128F0 ; 容量不足 → 重新分配
; 容量足够, 直接 memcpy
128b2 test r12, r12
128b5 jnz loc_12945 ; size > 0 → memcpy
; size == 0 → 直接截断
128bb mov [rbx+50h], r12 ; response_data.size = 0
128bf mov byte ptr [rax+r12], 0 ; '\0' 终止
; 设置 error_code 并唤醒等待线程
128c4 mov [rbx+68h], r13d ; this->error_code = error_code (offset 0x68)
128c8 lea rdi, [rbx+0A0h] ; rdi = &this->cond_var (offset 0xA0)
128cf call std::condition_variable::notify_one() ; 唤醒 CallOutInSync
; 解锁
128d4 add rsp, 18h
128d8 mov rdi, r14 ; mutex
128db pop rbx
; ... 寄存器恢复 ...
128e5 jmp _pthread_mutex_unlock ; 尾调用 unlock
; memcpy 路径 (size == 1 快速路径)
12945 mov rsi, [rbp+0] ; src = data.data()
12949 cmp r12, 1
1294d jz loc_12988 ; 单字节
1294f mov rdx, r12 ; n
12952 mov rdi, rax ; dest
12955 call _memcpy
1295a mov rax, [rbx+48h]
1295e jmp loc_128BB ; 设 size 并 '\0'
12988 movzx edx, byte ptr [rsi] ; 读取单字节
1298b mov [rax], dl ; 写入
1298d mov rax, [rbx+48h]
12991 jmp loc_128BB
```
### 4.2 Caller::BuildTrimSrvPacket() @ 0x12D20
构建 TrimSrv 协议请求包。
```asm
; trimrpc::Caller::BuildTrimSrvPacket(const string& service, const string& method)
; 返回: shared_ptr 通过 rdi (隐式返回值指针)
; rdi = 返回值指针, rsi = this (Caller*), rdx = &service, rcx = &method
_ZN7trimrpc6Caller18BuildTrimSrvPacketE...:
12d20 push r15
12d22 push r14
12d24 push r13
12d26 mov r13, rsi ; r13 = this (Caller*)
12d29 push r12
12d2b mov r12, rdi ; r12 = 返回值指针
12d2e mov rdi, rcx ; rdi = &method
12d31 push rbp
12d32 mov rbp, rdx ; rbp = &service (未使用, TrimSrv 不需要)
12d35 push rbx
12d36 sub rsp, 8
; 步骤 1: 查询命令 ID
12d3a call TrimSrvCommand::GetCommandId ; GetCommandId(method)
12d3f mov edi, 48h ; 分配 0x48 = 72 字节
12d44 mov r14d, eax ; r14d = command_id
12d47 call __Znwm ; operator new(72)
; 步骤 2: 初始化 TrimSrvRequestPacket (控制块 + 对象)
12d4c mov r15, [rbp+0] ; r15 = service.data() (保存备用)
12d50 mov rbp, [rbp+8] ; rbp = service.size()
12d54 mov rbx, rax ; rbx = 新分配的内存
; 设置 shared_ptr 控制块
12d57 mov rax, cs:qword_29990 ; 初始引用计数 = {1, 1}
12d5e lea rdi, [rbx+28h] ; 内联缓冲区地址
12d62 mov [rbx+8], rax ; control_block.ref_counts = {1, 1}
12d66 mov rax, cs:counted_ptr_inplace_vtable
12d6d mov [rbx+18h], rdi ; data.ptr = &inline_buf
12d71 add rax, 10h
12d75 mov [rbx], rax ; control_block.vtable = counted_ptr_inplace_vtable
12d78 mov rax, cs:TrimSrvRequestPacket_vtable
12d7f add rax, 10h
12d83 mov [rbx+10h], rax ; packet.vtable = TrimSrvRequestPacket vtable
; 步骤 3: 拷贝 method 字符串到 packet.data
12d87 cmp rbp, 0Fh
12d8b ja loc_12E20 ; > 15 字节 → 堆分配
12d91 cmp rbp, 1
12d95 jnz loc_12E00 ; != 1
12d97 movzx eax, byte ptr [r15] ; 单字节拷贝
12d9b mov [rbx+28h], al
; 步骤 4: 设置其余字段
12d9e mov [rbx+20h], rbp ; data.size
12da2 mov rdx, cs:Caller::session_id_ptr ; 全局 session_id 原子计数器
12da9 mov eax, 1
12dae mov byte ptr [rdi+rbp], 0 ; 追加 '\0'
12db2 lea rbp, [rbx+10h] ; rbp = packet 指针
12db6 mov qword ptr [rbx+38h], 0 ; packet.data_length = 0
12dbe mov [rbx+40h], r14d ; packet.command_id = command_id
; 步骤 5: 原子递增 session_id
12dc2 lock xadd [rdx], rax ; session_id_ = atomic_fetch_add(1)
12dc7 add rax, 1 ; rax = 新 session_id
12dcb mov rdi, rbp ; rdi = packet
12dce mov [r13+70h], rax ; caller->session_id = new_session_id
12dd2 mov rsi, [r13+70h]
12dd6 call TrimSrvRequestPacket::SetSession ; packet->SetSession(session_id)
; 步骤 6: 构造返回的 shared_ptr
12ddb mov [r12], rbp ; return.ptr = packet
12ddf mov rax, r12
12de2 mov [r12+8], rbx ; return.control_block = allocated memory
12de7 add rsp, 8
; ... 寄存器恢复 ...
12df5 retn
```
### 4.3 Caller::BuildRpcPacket() @ 0x14840 (部分)
构建 RpcPacket 协议请求包, 包含 JSON 序列化和原子 session_id 递增。
```asm
; trimrpc::Caller::BuildRpcPacket(const string& service, const string& method, const string& data)
; rdi = 返回值指针, rsi = this, rdx = &service, rcx = &method, r8 = &data(token)
_ZN7trimrpc6Caller14BuildRpcPacketE...:
14840 push r15
14842 mov r15, rsi ; r15 = this (Caller*)
14845 push r14
14847 push r13
14849 mov r13, rdx ; r13 = &service
1484c push r12
1484e mov r12, rcx ; r12 = &method
14851 push rbp
14852 mov rbp, r8 ; rbp = &data (token/extra)
14855 push rbx
14856 sub rsp, 118h
; 步骤 1: 分配 shared_ptr (0xB8 = 16 控制块 + 0xA8 对象)
14862 mov edi, 0B8h
14867 call __Znwm ; operator new(0xB8)
1486c mov rbx, rax ; rbx = 分配的内存
; 步骤 2: 初始化控制块和 RpcPacket
1486f mov rax, cs:qword_29990 ; {1, 1} 引用计数
14876 mov [rbx+8], rax
1487a mov rax, cs:counted_ptr_inplace_vtable_RpcPacket
14881 add rax, 10h
14885 mov [rbx], rax ; control_block vtable
14888 lea rax, [rbx+10h] ; 对象起始地址
1488f mov [rsp+148h+var_130], rax
14894 call _ZN7trimrpc9RpcPacketC2Ev ; RpcPacket::RpcPacket()
; → magic=0x54525043, version=1
; 步骤 3: 如果有 token, 拷贝到 packet->token 字段
14899 mov r14, [rbp+8] ; r14 = token.size()
1489d test r14, r14
148a0 jz loc_14990 ; 无 token → 跳到 JSON 构建
; 拷贝 token 到 [rbx+0x78] (即 packet.token, offset 0x48 相对于 packet)
; ... SSO-aware string assign ...
14900 mov [rbx+2Ch], r14d ; 同时设置 reserved 字段 = token.size()
; 步骤 4: 构建 JSON 请求
; (走 loc_14990 路径)
14990 lea r14, [rsp+148h+var_E0]
14998 call PPJson::MutDocument::MutDocument() ; 创建 JSON 文档
149a2 lea rax, [rsp+148h+var_88]
149b5 call PPJson::MutValue::MutValue(MutDocument&) ; 创建根节点
; 连接 service + "." + method → "service.method" 字符串
; 构建 JSON: {"data":{"req":".","pid":,"reqid":""}}
; ... 大量字符串拼接代码 ...
; 步骤 5: PPJson::MutDocument::write() → 序列化 JSON 字符串
; 步骤 6: 设置为 packet.data 字段
; 步骤 7: 原子递增 session_id
14949 mov rdx, cs:Caller::session_id_ptr
14950 mov eax, 1
14955 lock xadd [rdx], rax ; atomic_fetch_add(&session_id_, 1)
1495a mov rdx, [rsp+148h+var_130]
1495f add rax, 1 ; new_session_id = old + 1
14963 mov [r15+70h], rax ; caller->session_id = new_session_id
14967 mov rax, [r15+70h]
1496b mov [rbx+20h], rax ; packet->session_id = new_session_id
; 步骤 8: 构造返回 shared_ptr
1496f mov rax, [rsp+148h+var_140]
14974 mov [rax], rdx ; return.ptr = &packet
14977 mov [rax+8], rbx ; return.control_block = allocation
1497b add rsp, 118h
1498c retn
```
### 4.4 Caller::Call() @ 0x15480
核心调用编排器: 获取连接 → 构建数据包 → 同步等待响应。
```asm
; trimrpc::Caller::Call(const string& service, const string& method, const string& data)
; rdi = this, rsi = &service, rdx = &method, rcx = &data
_ZN7trimrpc6Caller4CallE...:
15480 push r15
15482 push r14
15484 mov r14, rcx ; r14 = &data
15487 push r13
15489 mov r13, rsi ; r13 = &service
1548c push r12
1548e push rbp
1548f mov rbp, rdi ; rbp = this (Caller*)
15492 push rbx
15493 sub rsp, 58h
; 检查 response_data 是否为空 (旧数据清理)
15497 cmp qword ptr [rdi+50h], 0 ; this->response_data.size == 0?
1549c mov [rsp+88h+var_80], rdx
154a1 jnz loc_156E0 ; 非空 → 清理旧响应数据
; 初始化 error_code = -1
154a7 mov dword ptr [rbp+68h], 0FFFFFFFFh ; this->error_code = -1
; ---- 步骤 1: 获取/创建 RpcConnections 单例 ----
154ae mov r12, cs:RpcConnections::instance_ptr
154b5 mov rbx, [r12] ; rbx = instance_
154b9 mov rax, [r12]
154bd test rax, rax
154c0 jz loc_15730 ; 单例不存在 → DCL 创建
; ---- 步骤 2: 建立连接 ----
154c6 mov rsi, r13 ; &service
154c9 mov rdi, rbx ; RpcConnections*
154cc call RpcConnections::Connect ; Connect(service)
154d1 test eax, eax
154d3 jz loc_154E8 ; 0 = 成功
154d5 ; 非零 → 返回连接错误码 (3 或 4)
add rsp, 58h
; ... retn
; ---- 步骤 3: 获取 ServiceType ----
154e8 mov rbx, [r12] ; 重新加载 instance
; ... 拷贝 service 到栈上 string ...
15542 call RpcConnections::GetServiceType ; GetServiceType(service) → eax
15547 mov rdi, [rsp+88h+var_58]
1554c mov ebx, eax ; ebx = service_type (uint16_t)
; ---- 步骤 4: 根据类型构建数据包 ----
1556a cmp bx, 1 ; service_type == 1?
1556e jz loc_15AA0 ; TrimSrv → BuildTrimSrvPacket
; AppCgi (type != 1) → BuildRpcPacket
15574 mov rcx, [rsp+88h+var_80] ; &method
15579 mov rdi, [rsp+88h+src] ; 返回值指针
1557e mov r8, r14 ; &data
15581 mov rdx, r13 ; &service
15584 mov rsi, rbp ; this
15587 call Caller::BuildRpcPacket ; BuildRpcPacket(service, method, data)
; ---- 步骤 5: CallOutInSync ----
; ... shared_ptr 引用计数管理 ...
15636 lea rdx, [rsp+88h+var_68] ; &packet (shared_ptr)
1563b mov rsi, r13 ; &service
1563e mov rdi, rbp ; this
15641 call Caller::CallOutInSync ; CallOutInSync(service, packet)
; ---- 步骤 6: CancelByPacket 清理 ----
15646 mov r13, [r12]
15657 mov rdi, qword ptr [rsp+88h+var_68] ; packet*
1565c mov rax, [rdi]
1565f call qword ptr [rax+18h] ; packet->session() 虚调用
15662 mov rsi, rax
15665 mov rdi, r13
15668 call RpcConnections::CancelByPacket ; CancelByPacket(session_id)
; 检查 TrimSrv 错误映射
1566d cmp bx, 1 ; 是 TrimSrv 协议?
15671 jz loc_15AC0 ; 是 → 检查 error 8 → 202 映射
; 返回 error_code
1567c mov eax, [rbp+68h] ; eax = this->error_code
; ... 释放 shared_ptr ...
154d5 add rsp, 58h
; ... retn
; ---- DCL 单例创建路径 (loc_15730) ----
15730 mov r15, cs:mutex ; 全局互斥锁
15737 mov rdi, r15
1573a call _pthread_mutex_lock
; ...
15758 mov edi, 168h ; sizeof(RpcConnections) = 360 字节
1575d call __Znwm ; operator new(360)
; ... 初始化 RB-tree 头节点 × 5 ...
; ... 调用 RpcConnections::Init(10, thread_count) ...
; ... 存储到全局 instance_ ...
; ... pthread_mutex_unlock ...
```
### 4.5 Caller::CallOutInSync() @ 0x13CB0 (部分)
同步阻塞等待 RPC 响应, 使用 `pthread_cond_clockwait` 实现超时控制。
```asm
; trimrpc::Caller::CallOutInSync(const string& service, shared_ptr& packet)
; rdi = this, rsi = &service, rdx = &packet
_ZN7trimrpc6Caller13CallOutInSyncE...:
13cb0 push r15
13cb2 mov r15, rsi ; r15 = &service
13cb5 push r14
13cb7 lea r14, [rdi+78h] ; r14 = &this->mutex
13cbb push r13
13cbd mov r13, rdx ; r13 = &packet
13cc0 push r12
13cc2 push rbp
13cc3 mov rbp, rdi ; rbp = this (Caller*)
13cc9 push rbx
13cca sub rsp, 48h
; 加锁
13cce call _pthread_mutex_lock
13cd3 test eax, eax
13cd5 jnz loc_141FD ; 失败 → throw
; 获取连接句柄
13cdb mov r12, cs:RpcConnections::instance_ptr
13ce2 mov rbx, [r12]
13cf3 mov rsi, r15 ; &service
13cf6 mov rdi, rbx
13cf9 call RpcConnections::Get ; Get(service) → handle (rax)
13cfe mov rbx, [r12]
13d02 mov r15, rax ; r15 = connection_handle
; 构建回调: std::bind(&Caller::NotifyResult, this, _1, _2, _3)
13d16 mov edi, 18h ; 分配 24 字节给 bind 对象
13d32 call __Znwm
13d37 mov rdx, cs:Caller::NotifyResult_ptr ; 成员函数指针
13d44 mov qword ptr [rax+8], 0 ; padding
13d54 mov [rax+10h], rbp ; 捕获 this 指针
13d58 mov [rax], rdx ; 存储函数指针
; 调用 RpcConnections::Send(handle, packet, callback)
13d94 lea rdx, [rsp+78h+var_68] ; &packet
13d99 mov rsi, r15 ; handle
13d9c mov rdi, rbx ; RpcConnections*
13d9f mov rcx, r12 ; callback
13da2 call RpcConnections::Send
; 计算超时绝对时间
13e05 mov r13d, [rbp+40h] ; r13d = this->timeout (秒, offset 0x40)
13e09 call steady_clock::now() ; 获取当前时间
13e0e lea rdi, [rbp+0A0h] ; rdi = &this->cond_var
13e1b imul r13, 3B9ACA00h ; timeout * 10^9 (纳秒)
13e22 add r13, rax ; deadline = now + timeout_ns
; ... 转换为 timespec {秒, 纳秒} ...
; 等待条件变量 (带超时)
13e52 mov edx, 1 ; CLOCK_MONOTONIC = 1
13e5c call _pthread_cond_clockwait ; 阻塞等待
; 检查是否超时
13e61 call steady_clock::now()
13e66 cmp r13, rax ; deadline <= now ?
13e69 jle loc_13E88 ; 是 → 超时
; 未超时 → 正常返回
13e6b add rsp, 48h
13e6f mov rdi, r14 ; mutex
13e7c jmp _pthread_mutex_unlock ; 尾调用 unlock + return
; 超时处理
13e88 mov dword ptr [rbp+68h], 64h ; this->error_code = 100 (0x64)
13e8f jmp loc_13E6B ; 解锁并返回
```
---
## 5. RpcConnections — 单例连接管理器
### 5.1 Init() @ 0x196B0
```asm
; trimrpc::RpcConnections::Init(uint max_connections, uint thread_count)
; rdi = this, esi = max_connections, edx = thread_count
_ZN7trimrpc14RpcConnections4InitEjj:
196b0 cmp qword ptr [rdi], 0 ; ne_instance 已初始化?
196b4 jz loc_196C0
196b6 xor eax, eax ; 已初始化 → return 0
196b8 retn
196c0 push r12
196c2 mov r12d, esi ; r12d = max_connections
196c5 push rbp
196c6 mov ebp, edx ; ebp = thread_count
196c8 push rbx
196c9 mov rbx, rdi ; rbx = this
; 查询 CPU 核心数
196cc call std::thread::hardware_concurrency()
196d1 mov edi, r12d ; max_connections
196d4 cmp eax, 2
196d7 mov eax, 1
196dc cmovbe ebp, eax ; if (cores <= 2) thread_count = 1
; 创建网络引擎实例
196df mov esi, ebp
196e1 call neCreateInstance ; neCreateInstance(max_conn, threads)
196e6 mov rdx, cs:OnConnected_ptr
196ed mov esi, 1 ; event_type = 1 (OnConnected)
196f2 mov [rbx], rax ; this->ne_instance = result
196f5 mov rdi, rax
196f8 call neSetCallback ; neSetCallback(inst, 1, OnConnected)
196fd mov rdi, [rbx]
19700 mov esi, 4 ; event_type = 4 (OnConnectError)
19705 mov rdx, cs:OnConnectError_ptr
1970c call neSetCallback
19711 mov rdi, [rbx]
19714 mov esi, 2 ; event_type = 2 (OnReceived)
19719 mov rdx, cs:OnReceived_ptr
19720 call neSetCallback
19725 mov rdi, [rbx]
19728 mov esi, 5 ; event_type = 5 (OnSendError)
1972d mov rdx, cs:OnSendError_ptr
19734 call neSetCallback
19739 mov rdi, [rbx]
1973c mov esi, 3 ; event_type = 3 (OnDisconnected)
19741 mov rdx, cs:OnDisconnected_ptr
19748 call neSetCallback
; 注册默认服务
1974d mov rdi, rbx
19750 call RpcConnections::InitServiceMap()
19755 pop rbx
19756 xor eax, eax ; return 0
1975b retn
```
### 5.2 InitServiceMap() @ 0x19520
预注册 RPC Broker 为默认已知服务。
```asm
; trimrpc::RpcConnections::InitServiceMap(void)
; rdi = this
_ZN7trimrpc14RpcConnections14InitServiceMapEv:
19520 push r15
19522 xor eax, eax
; ... 栈帧设置 ...
; 构造 ServiceInfo 结构体
; name 字段: "Broker" (6 字节)
195a0 mov dword ptr [rsp+var_B8], 6B6F7242h ; "Brok" (LE)
195a8 mov word ptr [rsp+var_B8+4], 7265h ; "er"
195ad mov [rsp+var_C0], 6 ; name.size = 6
195b6 mov [rsp+var_B8+6], 0 ; '\0' 终止
; UDS 路径: 从 .rodata 中加载 (通过 xmmword 批量复制)
195bb call __Znwm ; 分配 0x1F 字节给路径字符串
195c0 movdqa xmm0, cs:xmmword_29B90 ; 加载 UDS 路径前 16 字节
195c8 mov rdi, [rsp+var_A8]
195cd movups [rax], xmm0 ; 写入前 16 字节
195d0 movdqa xmm0, cs:xmmword_29BA0 ; 加载后续字节
195d8 movups [rax+0Bh], xmm0 ; 写入 (有重叠)
; 插入到 service_map (RB-tree), key = "com.trim.rpcbroker"
19611 lea rsi, aComTrimRpcbrok ; "com.trim.rpcbroker" (18 字节)
19618 mov [rsp+var_A8], rax
19622 call std::_Rb_tree::_M_emplace_unique ; 插入到 [this+0x90] 的 RB-tree
; 清理临时字符串 (逆序释放)
; ... operator delete × 4 ...
1968a add rsp, 0A8h
1969b retn
```
### 5.3 Send() @ 0x192D0
发送数据包, 包含回调注册、序列化和单次重试逻辑。
```asm
; trimrpc::RpcConnections::Send(ulong handle, shared_ptr packet,
; function<void(ulong,int,string)> callback)
; rdi = this, rsi = handle, rdx = &packet, rcx = &callback
_ZN7trimrpc14RpcConnections4SendE...:
192d0 push r15
192d2 lea r15, [rdi+118h] ; r15 = &this->send_mutex (offset 0x118)
192d9 push r14
192db push r13
192dd mov r13, rcx ; r13 = &callback
192e0 push r12
192e2 mov r12, rdx ; r12 = &packet
192e5 push rbp
192e6 mov rbp, rsi ; rbp = handle
192e9 push rbx
192ea mov rbx, rdi ; rbx = this
192ed mov rdi, r15
; 加锁 send_mutex
192f4 call _pthread_mutex_lock
192f9 test eax, eax
192fb jnz loc_194EC ; 失败 → throw
; 加锁 callback_mutex (offset 0x140)
19301 lea r14, [rbx+140h]
19308 mov rdi, r14
1930b call _pthread_mutex_lock
19310 test eax, eax
19312 jnz loc_194E5
; 获取 packet 的 session_id (通过虚函数)
19318 mov rdi, [r12] ; rdi = packet.get()
1931c mov rax, [rdi] ; rax = vtable
1931f call qword ptr [rax+18h] ; packet->session() → rax
19322 mov rsi, [rbx+0D0h] ; RB-tree root
19329 mov [rsp+var_58], rax ; 保存 session_id
; 在 callback RB-tree 中查找/插入
; (RB-tree at offset 0xC0, 按 session_id 索引)
; ... 红黑树遍历代码 ...
194a8 lea rdx, [rsp+var_58] ; session_id
194ad lea rdi, [rbx+0C0h] ; &callback_tree
194b4 mov rcx, r13 ; &callback
194b7 call _Rb_tree::_M_emplace_hint_unique ; 插入 {session_id, callback}
; 解锁 callback_mutex
19396 mov rdi, r14
19399 call _pthread_mutex_unlock
; 序列化数据包
1939e mov rsi, [r12] ; packet.get()
193a2 lea rdi, [rsp+var_78] ; 栈上 string (输出)
193a7 mov rax, [rsi] ; vtable
193aa call qword ptr [rax+10h] ; packet->Serialize() → string
; 第一次 SendPacket
193ad mov ecx, [rsp+var_70] ; len = serialized.size() (uint32)
193b1 mov rdx, [rsp+var_78] ; data = serialized.data()
193b6 mov rsi, rbp ; handle
193b9 mov rdi, rbx ; this
193bc call RpcConnections::SendPacket
193c1 mov rdx, [rsp+var_78]
193c6 test al, al
193c8 jnz loc_194C8 ; 成功 → 清理并退出
; 重试一次 (第二次 SendPacket)
193ce mov ecx, [rsp+var_70]
193d2 mov rsi, rbp
193d5 mov rdi, rbx
193d8 call RpcConnections::SendPacket
193dd mov rdx, [rsp+var_78]
193e2 test al, al
193e4 jnz loc_194C8 ; 成功 → 清理
; 完全失败: syslog + callback(session, 102, "")
193ea mov rdx, rbp ; handle
193ed lea rsi, aSendErrorSessi ; "send error:session:0x%0lx"
193f4 mov edi, 3 ; LOG_ERR
193fb call _syslog
; 构造空字符串, 设 error_code = 102 (0x66)
19400 mov rdi, [r12]
1941c mov rax, [rdi]
1941f call qword ptr [rax+18h] ; packet->session()
19427 mov [rsp+var_80], rax ; session_id
1942c mov [rsp+var_84], 66h ; error_code = 102
; ... 调用 callback(session, 102, "") ...
; 解锁 send_mutex
19489 mov rdi, r15
19496 jmp _pthread_mutex_unlock ; 尾调用
```
### 5.4 OnReceived() 回调 @ 0x17490 (部分)
```asm
; trimrpc::RpcConnections::OnReceived(ulong handle, char* data, ulong len, void* ctx)
; (ne* 网络引擎回调, 静态函数)
_ZN7trimrpc14RpcConnections10OnReceivedE...:
17490 push r15
17492 lea rax, [rdi+0C8h] ; rax = &callback_tree_end (哨兵节点)
17499 push r14
; ... 保存寄存器 ...
; ctx (r8) 是 PacketProcessor 指针
174a9 test r8, r8
174ac jz loc_17615 ; ctx == null → 返回
174b2 mov rbp, r8 ; rbp = PacketProcessor*
174b5 mov rsi, rdx ; data
174bb mov rdx, rcx ; len
174be mov rax, [rbp+0] ; vtable
174c2 mov rdi, rbp
174c5 call qword ptr [rax] ; PacketProcessor::AppendAndParse(data, len)
174c7 test al, al ; 解析出完整包?
174c9 jz loc_17615 ; 否 → 等待更多数据
; 成功解析出完整包
174d0 mov rax, [rbp+0] ; vtable
174d9 mov rsi, rbp
174dc call qword ptr [rax+8] ; PacketProcessor::GetPacket() → shared_ptr
174df mov rsi, [rsp+var_88] ; packet*
174e9 mov rax, [rsi]
174ec call qword ptr [rax+20h] ; packet->data() → string
; 锁定 callback_mutex, 在 RB-tree 中按 session_id 查找回调
174ef lea r13, [r14+140h]
174f9 call _pthread_mutex_lock
17506 mov rdi, [rsp+var_88]
1750b mov rax, [rdi]
1750e call qword ptr [rax+18h] ; packet->session() → session_id
; RB-tree 查找 (session_id → callback)
17511 mov rbx, [r14+0D0h] ; rbx = tree root
17518 test rbx, rbx
1751b jz loc_17573 ; 树空 → 跳过
; ... 标准 RB-tree 中序查找 ...
; 找到后调用 callback(session_id, error_code, data_string)
```
### 5.5 AddService() @ 0x1A0E0
```asm
; trimrpc::RpcConnections::AddService(string service_name, const ServiceInfo& info)
; rdi = this, rsi = &service_name, rdx = &info
_ZN7trimrpc14RpcConnections10AddServiceE...:
1a0e0 push r15
1a0e2 lea rax, [rdi+0F0h] ; rax = &this->service_mutex (offset 0xF0)
; ... 保存寄存器 ...
1a0fd call _pthread_mutex_lock ; 加锁 service_mutex
; 在 service_map RB-tree (offset 0x90) 中查找
1a119 mov rax, [rsp+var_60]
1a11e mov rbp, [rax+0A0h] ; rbp = tree root (offset 0x90+0x10)
1a125 lea rbx, [rax+98h] ; rbx = tree end 哨兵
1a131 test rbp, rbp
1a134 jz loc_1A210 ; 空树 → 直接插入
; RB-tree 查找 (按 string key 比较)
1a13a mov rax, [rsp+var_58]
1a145 mov r12, [rax] ; r12 = search_key.data()
1a148 mov r14, [rax+8] ; r14 = search_key.size()
1a159 mov r15, [rbp+28h] ; r15 = node->key.size()
1a160 mov rdi, [rbp+20h] ; node->key.data()
1a164 cmp r15, r14
1a167 cmovbe rdx, r15 ; min(node_len, search_len)
1a170 mov rsi, r12 ; search_key.data()
1a173 call _memcmp ; memcmp(node_key, search_key, min_len)
; ... 标准 BST 比较与左/右子树遍历 ...
; 找到匹配 → 不插入, 直接返回 (解锁)
1a1f1 mov rdi, [rsp+mutex]
1a204 jmp _pthread_mutex_unlock
; 未找到 → 插入新节点
1a210 mov rdi, [rsp+var_60]
1a215 mov rcx, [rsp+var_40] ; &info
1a21d mov rdx, [rsp+var_58] ; &service_name
1a222 add rdi, 90h ; &service_map (RB-tree)
1a229 call _Rb_tree::_M_emplace_hint_unique ; 插入 {name, info}
1a22e jmp loc_1A1F1 ; 解锁
```
---
## 6. PacketProcessor — 数据流解析器
### 6.1 RpcPacketProcessor::AppendAndParse() @ 0x1CEC0 (部分)
处理 RpcPacket 协议的流式解析: 缓冲数据 → 检查 30 字节头 → 等待所有数据段。
```asm
; trimrpc::RpcPacketProcessor::AppendAndParse(char* data, ulong len)
; rdi = this, rsi = data, rdx = len
; this->state (offset 0x10): 0=等待头部, 1=等待数据
; this->packet (offset 0x1A0): shared_ptr
_ZN7trimrpc18RpcPacketProcessor14AppendAndParseEPcm:
1cec0 push r14
1cec2 push r13
1cec4 lea r13, [rdi+28h] ; r13 = &this->ostream (std::ostream at offset 0x28)
1cecc mov rbx, rdi ; rbx = this
; 若有新数据, 先写入 ostream 缓冲区
1ced3 test rsi, rsi
1ced6 jz loc_1CEE4
1ced8 mov r12, rdx ; r12 = len
1cede jnz loc_1D080 ; 有数据 → ostream.write(data, len)
; 计算缓冲区中可用数据量
1cee4 lea r14, [rbx+18h] ; r14 = &this->istream (offset 0x18)
1cee8 mov rdi, r14
1ceeb call std::istream::tellg() ; 读位置
1cef0 mov rdi, r13
1cef3 mov r12, rax
1cef6 call std::ostream::tellp() ; 写位置
1cefb sub rax, r12 ; available = write_pos - read_pos
1cefe mov rbp, rax
; 根据状态分发
1cf01 mov eax, [rbx+10h] ; state
1cf04 test eax, eax
1cf06 jnz loc_1CFB0 ; state != 0 → 等待数据
; ---- state 0: 等待 30 字节头部 ----
1cf0c cmp rbp, 1Dh ; available > 29 ?
1cf10 jg loc_1CF28
1cf12 ; 数据不足 → 返回 false
xor eax, eax
retn
; 头部完整, 读取 30 字节
1cf28 mov edi, 1Fh
1cf37 call __Znwm ; 分配 31 字节缓冲区
1cf40 mov edx, 1Eh ; 读 30 字节
1cf48 mov rsi, rax ; buf
1cf4f movups [rax], xmm0 ; 清零缓冲区
1cf52 movups [rax+0Eh], xmm0
1cf56 mov [rsp+var_48], rax ; 保存 buf 指针
1cf6d call std::istream::read ; istream.read(buf, 30)
; 反序列化头部到 this->packet (RpcPacket 对象)
1cf72 mov rdi, [rbx+1A0h] ; rdi = this->packet (RpcPacket*)
1cf79 mov rsi, [rsp+var_48] ; buf
1cf7e mov edx, 1Eh
1cf83 call RpcPacket::DeserializeHeader ; 解析 30 字节头部
; 切换到 state 1 (等待数据)
1cf8d mov dword ptr [rbx+10h], 1 ; this->state = 1
1cf94 sub rbp, 1Eh ; available -= 30
; ---- state 1: 等待完整数据段 ----
1cfb0 mov rdi, [rbx+1A0h] ; packet*
1cfb7 mov rax, [rdi] ; vtable
1cfba call qword ptr [rax+28h] ; packet->data_length() (虚调用)
; → 返回 data_len + token_len + extra_data_len + extra_data2_len
1cfbd mov eax, eax ; 零扩展
1cfbf cmp rax, rbp ; total_data_len > available ?
1cfc2 jg loc_1CF12 ; 是 → 返回 false, 等待更多数据
; 所有数据就绪, 读取并反序列化
; ... 读取 data_length 字节 ...
; ... 调用 RpcPacket::DeserializeData() ...
; ... 重置 state = 0 ...
; ... 返回 true ...
```
### 6.2 TrimSrvPacketProcessor::AppendAndParse() @ 0x1D4B0 (部分)
```asm
; trimrpc::TrimSrvPacketProcessor::AppendAndParse(char* data, ulong len)
_ZN7trimrpc22TrimSrvPacketProcessor14AppendAndParseEPcm:
1d4b0 push r15
1d4b8 lea r12, [rdi+28h] ; r12 = &ostream
; 有新数据时写入 ostream
1d4c5 test rsi, rsi
1d4c8 jz loc_1D4D2
1d4d0 jnz loc_1D510 ; → ostream.seekp(0, end); ostream.write(data, len)
; 计算可用数据量
1d4d2 lea rbp, [rbx+18h] ; &istream
1d4d9 call std::istream::tellg()
1d4e4 call std::ostream::tellp()
1d4e9 sub rax, r13 ; available
1d4ec mov r12, rax
; 需要至少 12 字节 (TrimSrv 头部大小)
1d4f1 cmp r12, 0Bh ; available > 11 ?
1d4f5 jg loc_1D538
1d4f7 ; 数据不足 → 返回 false
xor eax, eax
retn
; 读取 12 字节头部
1d538 lea r13, [rsp+var_88]
1d53d mov edx, 0Ch ; 12 字节
1d545 mov qword ptr [rsp+var_88], 0 ; 清零缓冲区
1d551 mov [rsp+var_98], r13
1d56c call std::istream::read ; istream.read(buf, 12)
; 调用 TrimSrvResponsePacket::DeserializeHeader
1d571 mov rdi, [rbx+1A0h] ; this->packet (TrimSrvResponsePacket*)
1d578 mov rsi, [rsp+var_98] ; buf
1d57d mov edx, 0Ch
1d582 call TrimSrvResponsePacket::DeserializeHeader
; 计算 data_length = packet_size - 12
1d587 mov rdi, [rbx+1A0h]
1d593 mov r14, cs:data_length_vfunc_ptr
1d5a6 cmp rax, r14 ; 虚函数指针比较 (内联优化检查)
1d5af mov rax, [rdi+10h] ; packet_size (从对象字段直接读)
1d5b3 sub eax, 0Ch ; data_length = packet_size - 12
1d5b6 lea r15, [rsp+var_68]
1d5bb mov r12d, eax ; r12d = data_length
; 分配缓冲区, 读取 data_length 字节
; ... istream.read(buf, data_length) ...
; 调用 TrimSrvResponsePacket::DeserializeData(buf, data_length)
; 验证实际读取量 == 预期量
; 成功后重置 stringstream 状态
```
---
## 7. TrimSrvCommand — 命令路由哈希表
### 7.1 GetCommandId() @ 0x1FEF0
在全局命令映射表中查找方法名对应的命令 ID。支持两种查找策略: 小表线性遍历和大表布谷哈希。
```asm
; trimrpc::TrimSrvCommand::GetCommandId(const string& method_name)
; rdi = &method_name
; 返回: eax = command_id (未找到返回 0)
_ZN7trimrpc14TrimSrvCommand12GetCommandIdE...:
1fef0 push r15
1fef2 push r14
1fef4 push r13
1fef6 push r12
1fef8 mov r12, rdi ; r12 = &method_name
1fefc push rbx
1fefd sub rsp, 8
; 加载全局 CommandMap 对象
1ff01 mov rbx, cs:obj ; rbx = &CommandMap (全局单例)
1ff08 cmp qword ptr [rbx+18h], 14h ; CommandMap.count > 20 ?
1ff0d ja loc_1FF88 ; 是 → 大表, 用布谷哈希
; ======== 小表路径: 线性遍历链表 ========
1ff0f mov rbx, [rbx+10h] ; rbx = 链表头节点
1ff13 test rbx, rbx
1ff16 jz loc_20011 ; 空表 → return 0
1ff1c mov rbp, [rdi+8] ; rbp = method_name.size()
1ff20 mov r13, [rdi] ; r13 = method_name.data()
1ff23 test rbp, rbp
1ff26 jz loc_1FF7C ; size==0 → 特殊处理
; 链表遍历循环
1ff28 mov rsi, [rbx+8] ; node->name.data()
1ff2c cmp [rbx+10h], rbp ; node->name.size() == method_name.size() ?
1ff30 jz loc_1FF4E ; 长度匹配 → memcmp
1ff38 mov rbx, [rbx] ; rbx = node->next
1ff3b test rbx, rbx
1ff3e jz loc_20011 ; 链表结束 → return 0
1ff44 mov rsi, [rbx+8]
1ff48 cmp [rbx+10h], rbp
1ff4c jnz loc_1FF38 ; 长度不匹配 → 继续
; 长度匹配, 做内容比较
1ff4e mov rdx, rbp ; n = size
1ff51 mov rdi, r13 ; s1 = method_name.data()
1ff54 call _memcmp
1ff59 test eax, eax
1ff5b jnz loc_1FF38 ; 不匹配 → 继续遍历
; 找到匹配节点 → 返回 command_id
1ff5d mov eax, [rbx+28h] ; eax = node->command_id (offset 0x28)
1ff60 add rsp, 8
; ... 寄存器恢复 ...
1ff6e retn
; ======== 大表路径: 布谷哈希 ========
1ff88 mov rsi, [rdi+8] ; method_name.size()
1ff8c mov rdi, [rdi] ; method_name.data()
1ff8f mov edx, 0C70F6907h ; hash_seed = 0xC70F6907
1ff94 call std::_Hash_bytes ; hash(data, size, seed)
1ff99 mov rbp, [rbx+8] ; rbp = bucket_count
1ff9d xor edx, edx
1ff9f mov r13, rax ; r13 = hash_value
1ffa2 div rbp ; rdx = hash % bucket_count
1ffa5 mov rax, [rbx] ; rax = buckets 数组
1ffa8 mov r14, [rax+rdx*8] ; r14 = bucket[hash % count] (链表头)
1ffac mov r15, rdx ; r15 = bucket_index
1ffaf test r14, r14
1ffb2 jz loc_20011 ; 空桶 → return 0
; 布谷哈希链遍历
1ffb4 mov rbx, [r14] ; rbx = 链表第一个节点
1ffb7 mov rcx, [rbx+30h] ; rcx = node->cached_hash
1ffdf cmp r13, rcx ; 哈希值匹配?
1ffe2 jnz loc_1FFC0 ; 不匹配 → 下一个节点
; 哈希匹配, 做精确比较
1ffe4 mov rdx, [r12+8] ; method_name.size()
1ffe9 cmp rdx, [rbx+10h] ; == node->name.size() ?
1ffed jnz loc_1FFC0
1ffef test rdx, rdx
1fff2 jz loc_20005 ; 两者都是空串 → 匹配
1fff4 mov rsi, [rbx+8] ; node->name.data()
1fff8 mov rdi, [r12] ; method_name.data()
1fffc call _memcmp
20001 test eax, eax
20003 jnz loc_1FFC0 ; 不匹配 → 继续
; 找到 → 取 command_id
20005 mov rbx, [r14]
20008 test rbx, rbx
2000b jnz loc_1FF5D ; 返回 node->command_id
; 未找到
20011 xor eax, eax ; return 0
20017 pop rbx
; ... 恢复 ...
20021 retn
```
**关键常量**: 布谷哈希种子 `0xC70F6907`, 通过 `std::_Hash_bytes` (MurmurHash 变体) 计算桶索引。
---
## 8. Response 工厂
### 8.1 Response::Create() @ 0x23B80
根据 `ServiceType` 分配不同大小的响应子类对象。
```asm
; trimrpc::Response::Create(int service_type, const string& data)
; rdi = 输出 shared_ptr 指针, esi = service_type, rdx = &data
_ZN7trimrpc8Response6CreateE...:
23b80 push r15
23b82 pxor xmm0, xmm0
23b86 push r14
23b8c mov r12, rdx ; r12 = &data
23b91 mov rbx, rdi ; rbx = 输出指针
23b98 movups [rdi], xmm0 ; 初始化 shared_ptr = {null, null}
; 分发 service_type
23b9b test esi, esi
23b9d jz loc_23C50 ; type == 0 → AppCgiResponse
23ba3 cmp esi, 1
23ba6 jz loc_23CF0 ; type == 1 → TrimSrvResponse
; ---- 默认: RawResponse (0x90 = 144 字节) ----
23bac mov edi, 90h
23bb1 call __Znwm ; operator new(144)
23bb6 mov rbp, rax
; ... 设置 vtable, 引用计数 ...
23be8 mov rax, cs:RawResponse_vtable_ptr
23bef add rax, 10h
23bf3 mov [rbp+10h], rax ; packet.vtable = RawResponse vtable
; ... 拷贝 data 字符串, 初始化 PPJson ...
23c25 call PPJson::MutDocument::MutDocument()
23c2a lea rdi, [rbp+40h]
23c31 call PPJson::MutValue::MutValue(PPJson::MutDocument&)
; 设置返回的 shared_ptr
23c3a mov [rbx], r14 ; ptr = &packet
23c3d mov [rbx+8], rbp ; control_block = allocation
; ---- type 0: AppCgiResponse (0xE0 = 224 字节) ----
23c50 mov edi, 0E0h
23c55 call __Znwm
23c5a mov rbp, rax
23c64 mov rsi, r12 ; &data
23c79 add rax, 10h
23c7d mov [rbp+0], rax ; counted_ptr vtable
23c81 call AppCgiResponse::AppCgiResponse(const string&) ; 构造函数
23c8a mov [rbx], r13 ; ptr
23c8d mov [rbx+8], rbp ; control_block
; ---- type 1: TrimSrvResponse (0xB0 = 176 字节) ----
; (类似逻辑, 在 loc_23CF0)
```
---
## 9. 常量与关键魔数速查
| 值 | 类型 | 语义 | 出现位置 |
|-----|------|------|----------|
| `0x54525043` | uint32 | RpcPacket magic "CPRT" (LE) | 0x1DDF7, DeserializeHeader |
| `0x2E6D6F63` | uint32 | 服务名前缀 "com." (LE) | 0x25700 VerifyServiceId |
| `0xC70F6907` | uint32 | 布谷哈希种子 | 0x1FF8F GetCommandId |
| `0x1E` (30) | 头部大小 | RpcPacket 固定头长度 | Serialize/AppendAndParse |
| `0x0C` (12) | 头部大小 | TrimSrv 固定头长度 | TrimSrvPacketProcessor |
| `0x0A` (10) | 默认秒数 | RPC 调用超时 | Caller 构造函数 |
| `0x80` (128) | 长度上限 | 服务名最大字节数 | VerifyServiceId |
| `0x64` (100) | 错误码 | 同步等待超时 | CallOutInSync 0x13E88 |
| `0x66` (102) | 错误码 | 发送完全失败 | Send 0x1942C |
| `0xD0` (208) | 对象大小 | sizeof(Caller) | RpcClient 构造函数 |
| `0xA8` (168) | 对象大小 | sizeof(RpcPacket) | BuildRpcPacket 0x14862 |
| `0xB8` (184) | 分配大小 | RpcPacket + 控制块 (16+168) | BuildRpcPacket |
| `0x48` (72) | 分配大小 | TrimSrvRequestPacket + 控制块 | BuildTrimSrvPacket |
| `0x168` (360) | 对象大小 | sizeof(RpcConnections) | Caller::Call DCL 路径 |
| `0x1B0` (432) | 对象大小 | sizeof(PacketProcessor) | Connect |
| `0x88` (136) | 对象大小 | sizeof(RpcClient) | 构造函数 |
| `0xE0` (224) | 对象大小 | sizeof(AppCgiResponse) | Response::Create |
| `0xB0` (176) | 对象大小 | sizeof(TrimSrvResponse) | Response::Create |
| `0x90` (144) | 对象大小 | sizeof(RawResponse) | Response::Create |
---
## 10. 错误码映射表
| 码 | 十六进制 | 语义 | 产生函数 | 地址 |
|----|---------|------|----------|------|
| 0 | 0x00 | 成功 | 各处 | — |
| 1 | 0x01 | HandleServiceInfo 服务数量不匹配 | HandleServiceInfo | 0x26330 |
| 3 | 0x03 | neCreateSocket 失败 | RpcConnections::Connect | 0x1A920 |
| 4 | 0x04 | neConnect 失败 / 轮询超时 | RpcConnections::Connect | 0x1A920 |
| 5 | 0x05 | 服务名超过 128 字节 | VerifyServiceId | 0x25718 |
| 6 | 0x06 | 服务名不以 "com." 开头 | VerifyServiceId | 0x256D9 |
| -1 | 0xFFFFFFFF | 初始值 (调用前) | Caller::Call | 0x154A7 |
| 100 | 0x64 | pthread_cond_clockwait 超时 | CallOutInSync | 0x13E88 |
| 102 | 0x66 | SendPacket 两次重试均失败 | RpcConnections::Send | 0x1942C |
| 200 | 0xC8 | HandleServiceInfo JSON 解析失败 | HandleServiceInfo | 0x26330 |
| 201 | 0xC9 | TrimSrvRequest::Build 失败 | TrimSrvRequest::Build | 0x23510 |
| 202 | 0xCA | TrimSrv error 8 重映射 | Caller::Call | 0x15480 |
---
## 11. 函数地址完整索引
### RpcClient (API 层)
| 地址 | 大小 | 函数签名 |
|------|------|----------|
| `0x259b0` | 0x23D | `RpcClient::RpcClient(const string& uuid, const string& service_name)` |
| `0x256c0` | 0x77 | `RpcClient::VerifyServiceId(const string& service)` |
| `0x25bf0` | 0x5F0 | `RpcClient::Call(const string& service, const string& method, const string& data)` |
| `0x261e0` | 0xF4 | `RpcClient::Call(const Request& req)` |
| `0x262e0` | 0x4F | `RpcClient::Call(const string& service, const string& method)` |
| `0x25740` | 0x166 | `RpcClient::Call(const string&, const string&, const string&, function<>)` |
| `0x27740` | 0x8FF | `RpcClient::ApplyPermission(const vector& services)` |
| `0x28040` | 0x232 | `RpcClient::ApplyPermission(const string& service)` |
| `0x26330` | 0x140A | `RpcClient::HandleServiceInfo(const string& response, uint count)` |
| `0x258b0` | 0x4 | `RpcClient::SetTimeOut(uint seconds)` |
| `0x258c0` | 0x7 | `RpcClient::error_no()` |
| `0x25980` | 0x2E | `RpcClient::response()` |
### Caller (调用核心)
| 地址 | 大小 | 函数签名 |
|------|------|----------|
| `0x12b60` | 0x111 | `Caller::Caller(const string& uuid)` |
| `0x12c80` | 0x1A | `Caller::Caller(const string& uuid, uint timeout)` |
| `0x15480` | 0x8F7 | `Caller::Call(const string& service, const string& method, const string& data)` |
| `0x14840` | 0xC38 | `Caller::BuildRpcPacket(const string& service, const string& method, const string& data)` |
| `0x12d20` | 0x159 | `Caller::BuildTrimSrvPacket(const string& service, const string& method)` |
| `0x13cb0` | 0x58A | `Caller::CallOutInSync(const string& service, shared_ptr& packet)` |
| `0x14240` | 0x5F8 | `Caller::CallOutWithFuture(const string& service, shared_ptr& packet)` |
| `0x12860` | 0x151 | `Caller::NotifyResult(ulong session, int error, const string& data)` |
| `0x12ca0` | 0x73 | `Caller::Wait()` |
### RpcConnections (连接管理)
| 地址 | 大小 | 函数签名 |
|------|------|----------|
| `0x196b0` | 0xAC | `RpcConnections::Init(uint max_conn, uint threads)` |
| `0x19520` | 0x17C | `RpcConnections::InitServiceMap()` |
| `0x1a920` | ~0x700 | `RpcConnections::Connect(const string& service)` |
| `0x192d0` | 0x244 | `RpcConnections::Send(ulong handle, shared_ptr, function<> callback)` |
| `0x17490` | ~0x300 | `RpcConnections::OnReceived(ulong, char*, ulong, void*)` |
| `0x1a0e0` | 0x15C | `RpcConnections::AddService(string name, const ServiceInfo& info)` |
| `0x1a730` | — | `RpcConnections::GetServiceType(string service)` |
| `0x17440` | 0x50 | `RpcConnections::SendPacket(ulong handle, const char* data, uint len)` |
### 协议层
| 地址 | 大小 | 函数签名 |
|------|------|----------|
| `0x1ddf0` | 0x9B | `RpcPacket::RpcPacket()` |
| `0x1dc30` | 0x1BC | `RpcPacket::Serialize() → string` |
| `0x1dea0` | 0x38 | `RpcPacket::DeserializeHeader(const char*, uint)` |
| `0x1dee0` | 0x670 | `RpcPacket::DeserializeData(const char*, uint)` |
| `0x163e0` | 0xA9 | `TrimSrvRequestPacket::Serialize() → string` |
| `0x21320` | 0x17C | `TrimSrvResponsePacket::DeserializeHeader(const char*, uint)` |
| `0x1cec0` | ~0x2C0 | `RpcPacketProcessor::AppendAndParse(char*, ulong)` |
| `0x1d4b0` | ~0x2C0 | `TrimSrvPacketProcessor::AppendAndParse(char*, ulong)` |
| `0x1fef0` | 0x132 | `TrimSrvCommand::GetCommandId(const string&)` |
### Request/Response
| 地址 | 大小 | 函数签名 |
|------|------|----------|
| `0x21680` | — | `Request::Request(const string& service, const string& method, const string& extra)` |
| `0x23510` | — | `TrimSrvRequest::Build()` |
| `0x21c70` | — | `AppCgiRequest::Build()` |
| `0x23b80` | ~0x230 | `Response::Create(int type, const string& data) → shared_ptr` |
| `0x24c20` | — | `AppCgiResponse::error_no()` |
| `0x252f0` | — | `TrimSrvResponse::error_no()` |
---
</details>
